Fundamentals of Oscilloscopes Slide 43

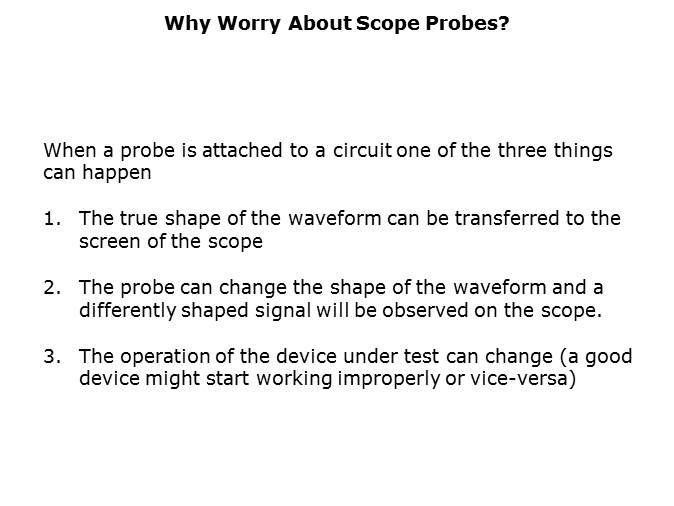

The primary reason to be concerned about using the proper scope probe are that the probe can change the wave shape of the waveform being measured rather than transferring the true shape of the waveform to the screen of the scope. Depending on the type of probe and the frequencies that the user is probing, it is necessary to be concerned about probing properly.
