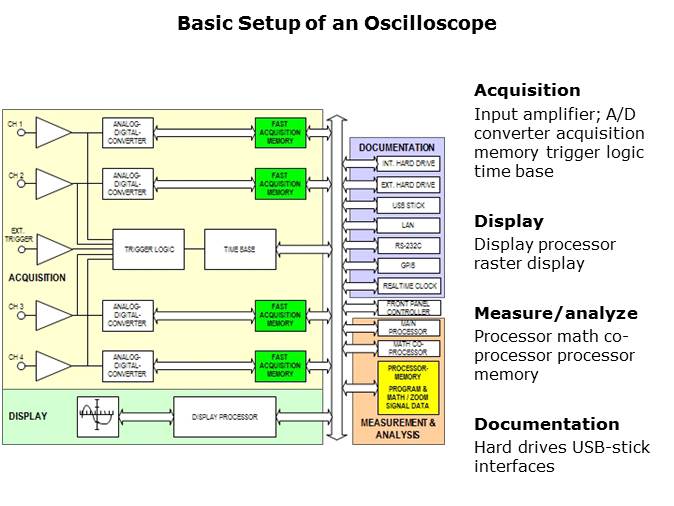

Shown on this slide is the basic block diagram of an oscilloscope. The acquisition system includes analog to digital converters, fast acquisition memories, trigger logic, time base, and etc. The processing area is shown on the right side of the display, including the documentation outputs, the hard drives, processor memory and etc. Lastly, in the green area are the display processor and the display.
