Fundamentals of Oscilloscopes Slide 23

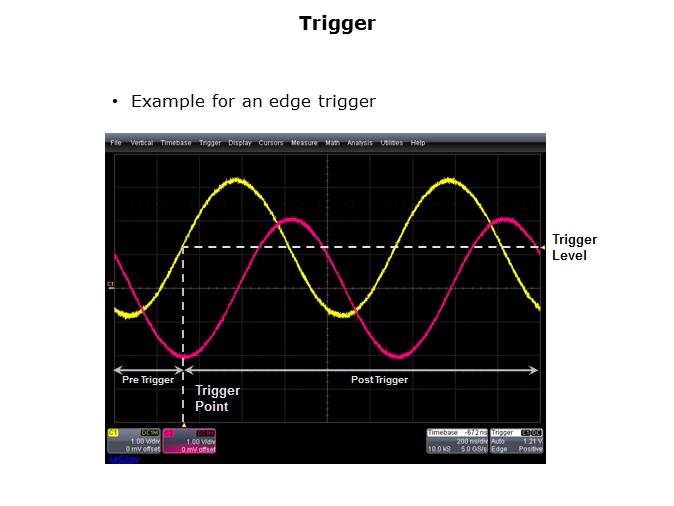

Triggering is another common feature of an oscilloscope. Shown on this slide is the trigger level in which the threshold for the trigger is set, the amplitude threshold. The trigger time or delay time may also be set. The small yellow carrot seen at the bottom left of the screen indicates the trigger point. What occurs before the trigger point is pre-trigger, what occurs after the trigger point is called post trigger.

PTM Published on: 2012-06-11
