Core-Microconverter-Slide60

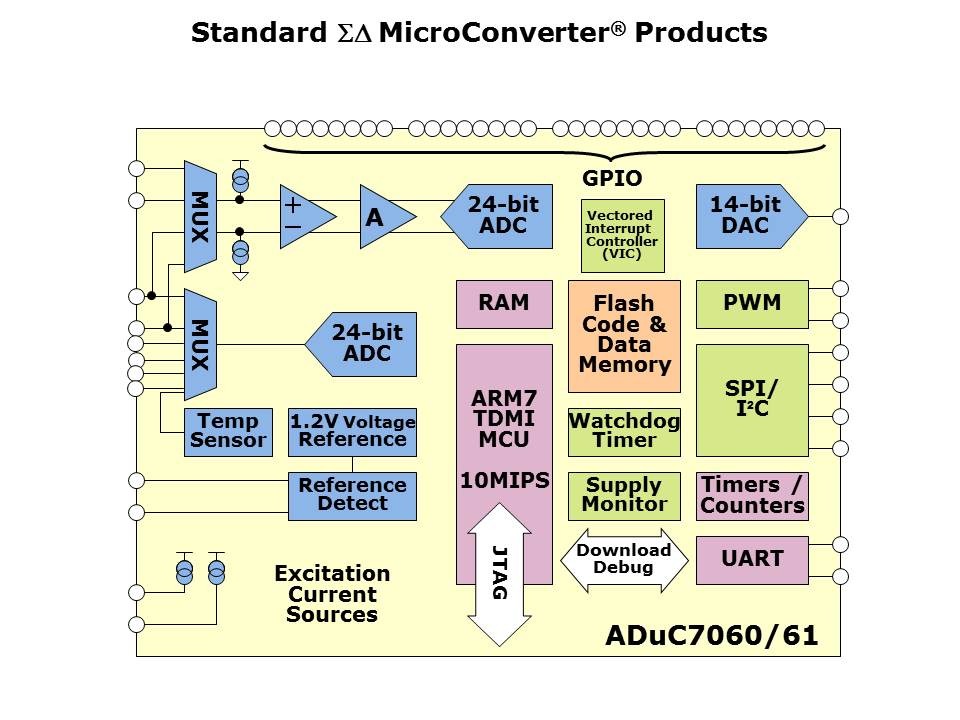

The ARM7 core and its memory interface, accessing 32kB of FLASH and 4kB of SRAM, are optimized to reduce power consumption which is why the CPU speed is limited to a maximum of 10.24Mhz. Additionally, this is the first ARM7 based part to provide a VIC (vectored interrupt controller) which allows interrupt nesting and prioritization to 16 levels. In contrast, ADI’s standard ARM7 parts only allow 2-levels of interrupt nesting.

PTM Published on: 2006-06-30
