Product List

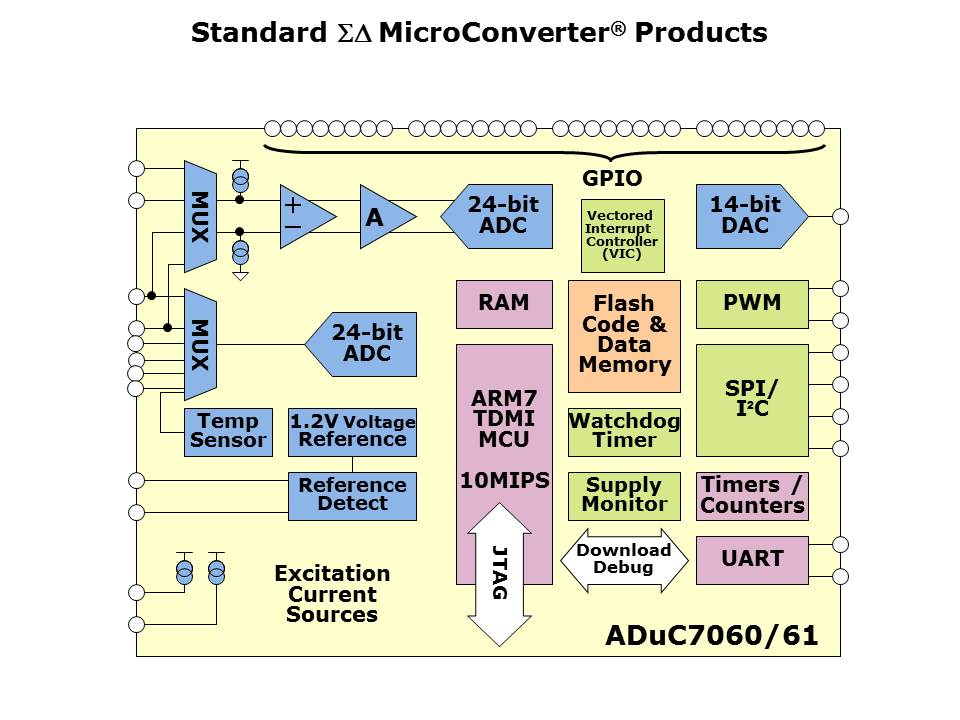

The ADuC7060/61 parts are standard Sigma-Delta microconverters that were derived from a battery sensor ASIC. Highlighted in blue at the top of this diagram is the primary ADC with a PGA (programmable gain amplifier) on the front end that has settings between 1 and 512. Below this is the multi-channel secondary ADC.
