ADuC812 ADuC814 ADuC831 ADuC832 ADuC841 ADuC842 ADuC843

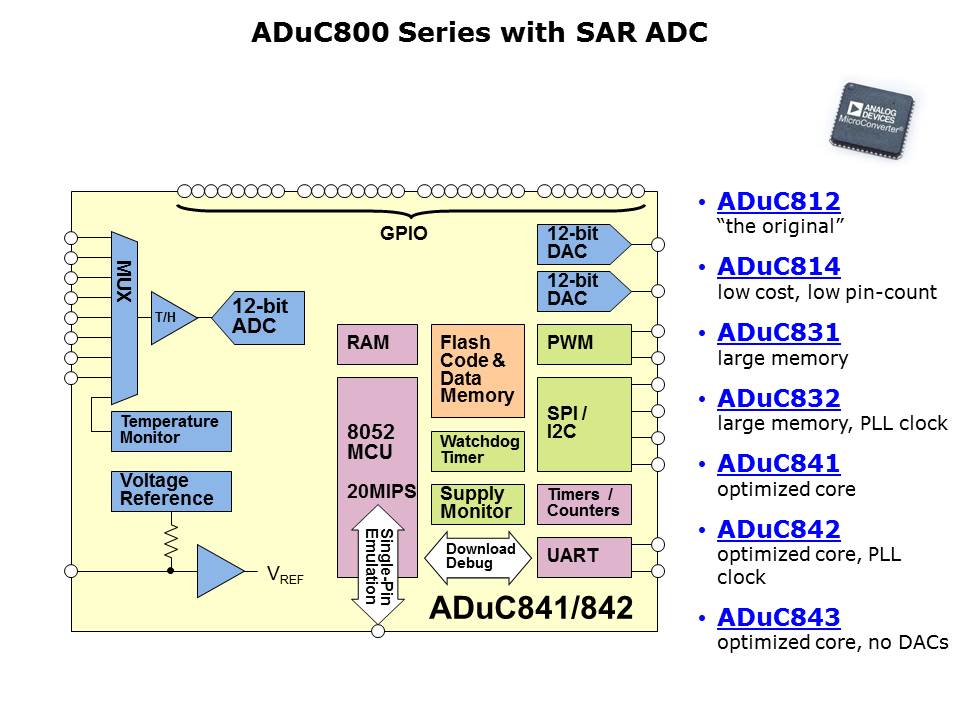

This block diagram shows the features incorporated in the SAR ADC based parts. The SAR ADC is highlighted in blue as are the 12-bit DAC outputs and the internal reference source. Listed in the right-hand column are the SAR ADC device part numbers available.
