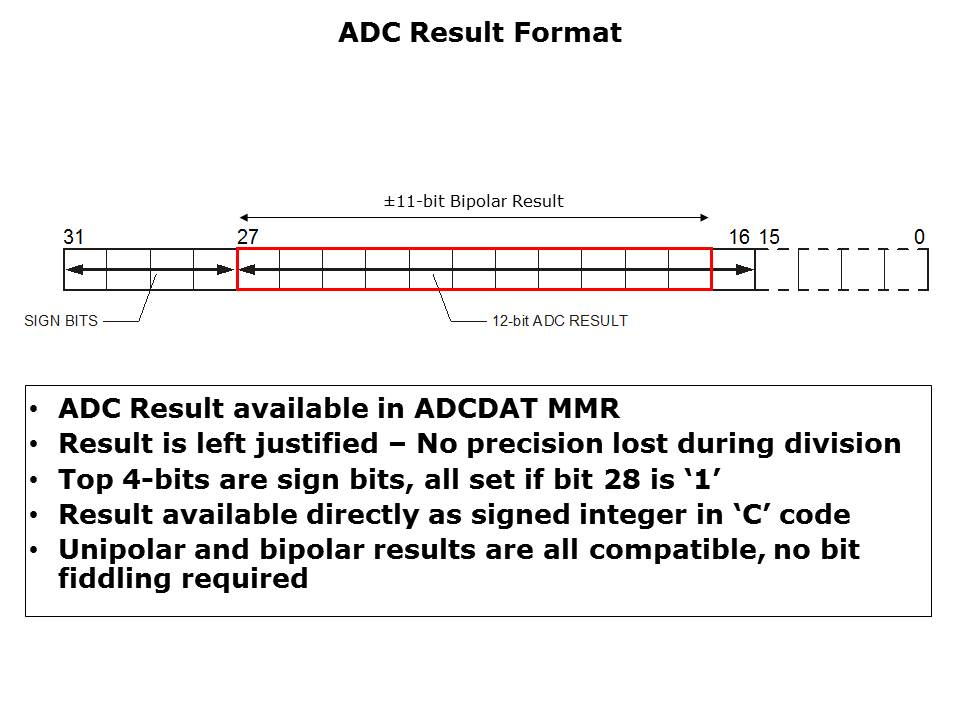

This format has the advantage in that the 32-bit word can be used directly as a signed integer in ‘C’ code. By orientating the ADC result as shown with the MSB of the 11-bit Bipolar result also placed at bit 27 results in the unipolar and bipolar results being compatible. The results can then be used in the same functions without the need for bit fiddling to adapt the result for the specific function.
PTM Published on: 2006-06-30
