Core-Microconverter-Slide13

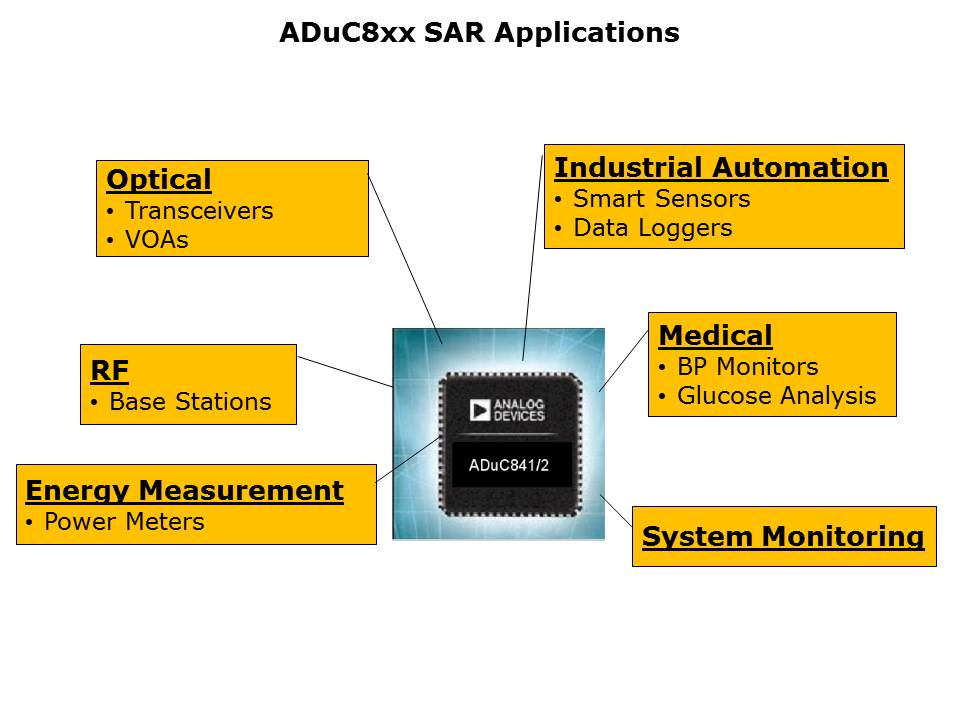

Shown here is an overview of the different applications that the SAR ADC based ADuC8xx devices are used in. The ADuC702x series is now preferred in optical applications but, some of the low-power and simpler designs continue to use 8052 based parts. Also, RF (radio frequency) applications include power amplifier controls where the SAR ADC measures the power and the DAC outputs are used set output power set-points.

PTM Published on: 2006-06-30
