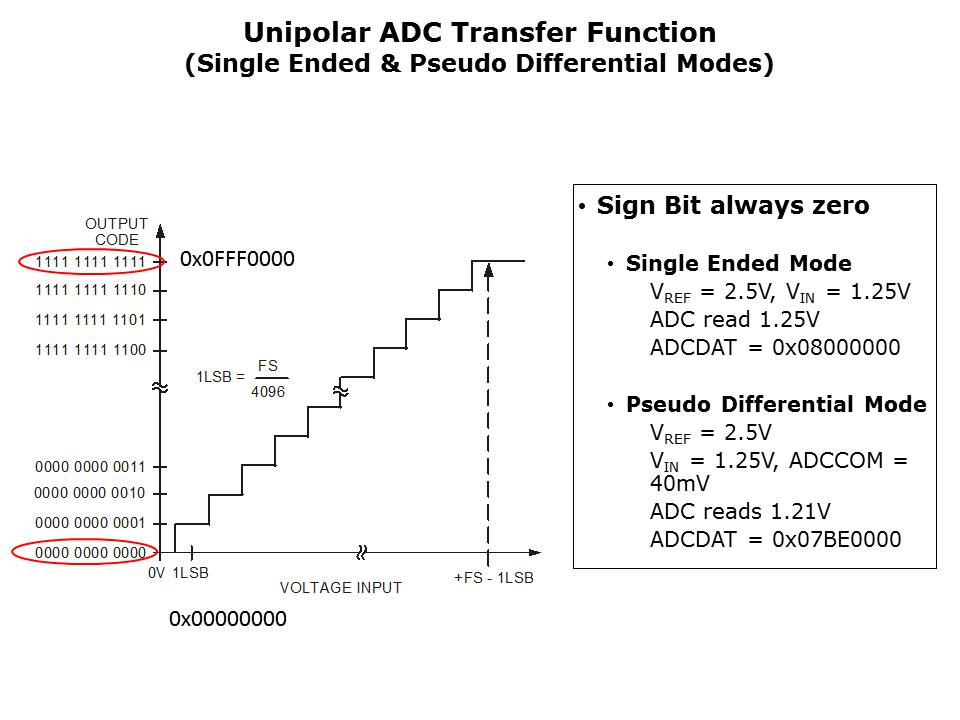

For the pseudo differential example, again assume that the internal 2.5V is used reference with a 1.25V input signal. The ADCCOM pin is biased to 40mV so the net effect of this is that the ADC will read 1.21V. Resulting in an ADCDAT value of 0x07BE0000 hex.
