Core-Microconverter-Slide50

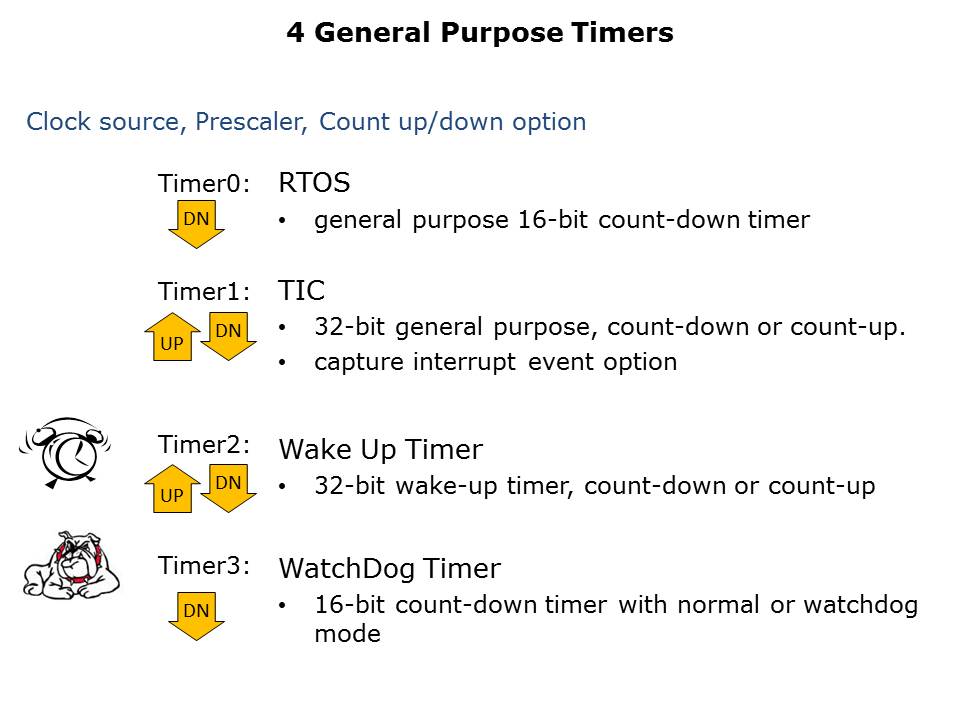

Four general purpose times are included on-chip. Timer 0 can be configured as a general purpose count down timer which can also be used by a RTOS. Timer 1 is a 32-bit general purpose count-down or count-up timer that has a capture interrupt event option.

PTM Published on: 2006-06-30
