MPC55xx-Slide16

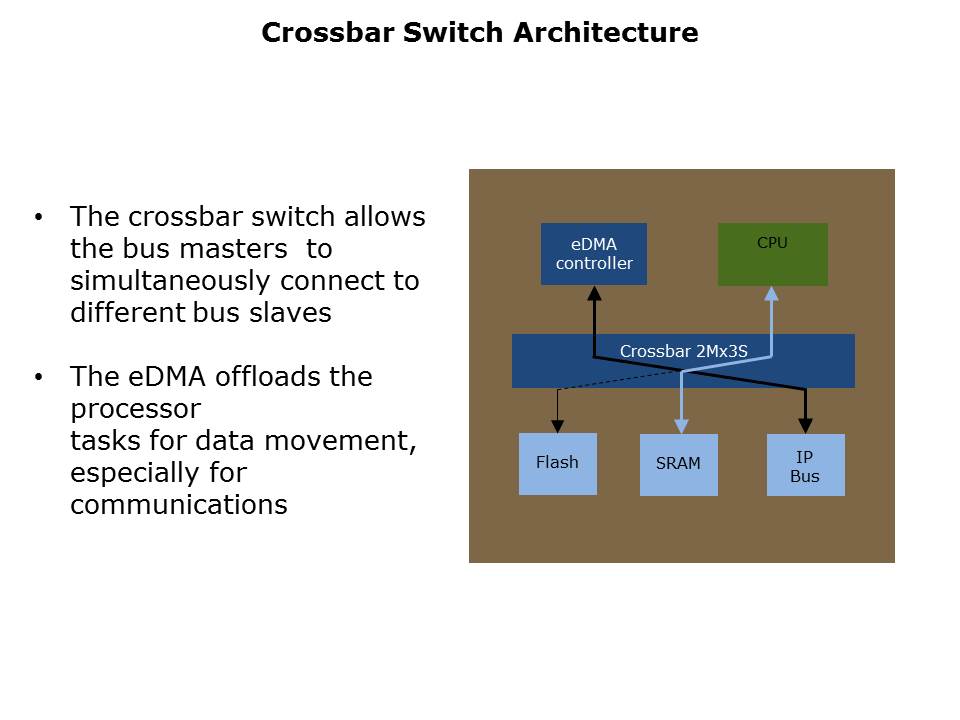

The integrated crossbar switch allows both the DMA and the core to access the bus slaves simultaneously, this greatly speeds up execution time and performance. Note the DMA and the core cannot access the same peripheral at the same time, so an arbitration scheme is in place to take care of this should it occur.
