HELI-R SMD LEDs

Kingbright adds the HELI-R series 1206 and PLCC-2 reverse mount SMDs to their HELI line of LEDs

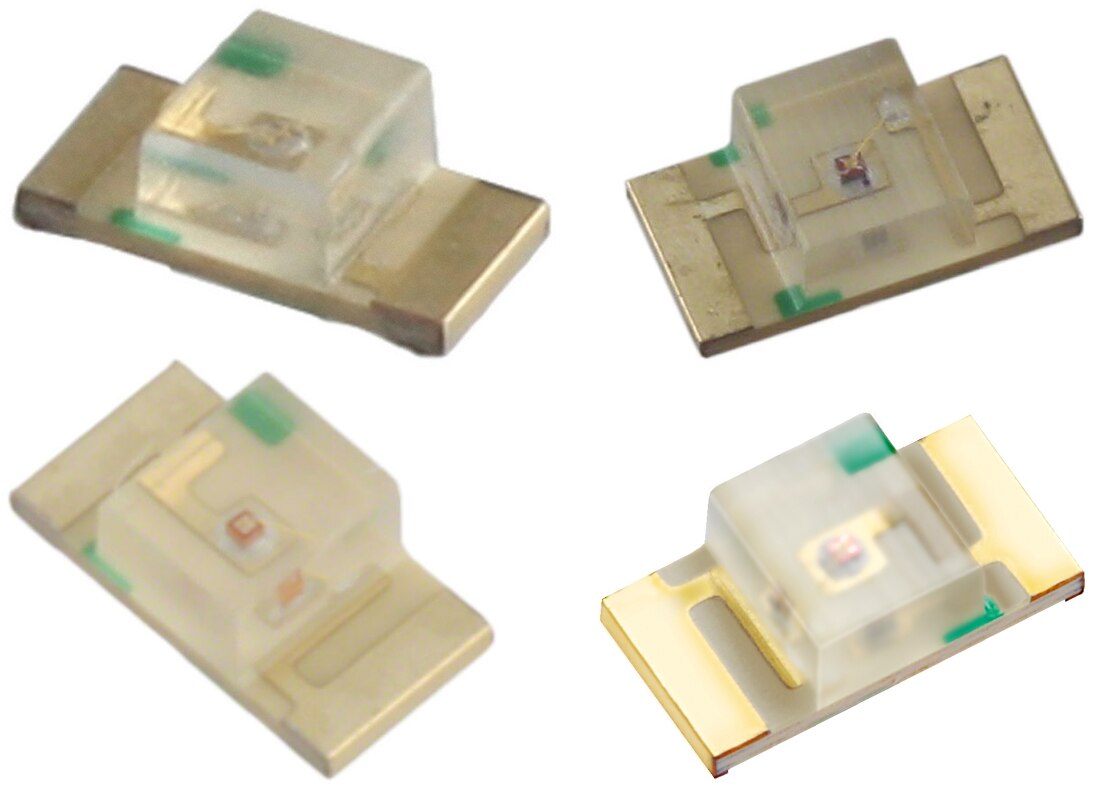

Image of Kingbright's HELI-R SMD LEDs Kingbright's HELI-R SMD LEDs are available in top-emitting, 1206 and PLCC-2 industry-standard, reverse mount packages. They feature high luminosity output while maintaining energy-efficient requirements all engineered with reverse mount technology. Reverse mount configuration provides advantages in designs with space and height constraints and facilitates streamlining production using automatic placement equipment.

In compliance with RoHS and REACH regulations, HELI-R LED series is available in the full-color spectrum and contains single, bi-color and full-color options with superior performances while operating at low current (20 mA typical). They are an exceptional series for backlighting, home automation, icon illumination, medical equipment, consumer devices, and battery-operated applications.

This series offers PLCC-2 packages equipped with Z-bend leads available in all standard colors including bi-color and full-color combinations. In addition, standard 1206 packages are presented with flat top, dome, and inner dome lens options to provide various intensities and emission angles ranging from 30° to 140° viewing angle. To complete this series, a matching infrared emitter/detector pair is also available in the reverse mount 1206 SMD package option.

HELI-R SMD LEDs

ImageManufacturer Part NumberDescriptionLens ColorLens TransparencyLens SizeAvailable QuantityPriceView Details
LED GREEN CLEAR CHIP SMD BOT ENTAPTR3216CGCKLED GREEN CLEAR CHIP SMD BOT ENTColorlessClear1.40mm x 1.60mm47851 - Immediate$2.22View Details
LED RED CLR CHIP SMD BOTTOM ENTAPTR3216SURCKLED RED CLR CHIP SMD BOTTOM ENTColorlessClear1.40mm x 1.60mm125280 - Immediate$1.73View Details
LED YELLOW CLEAR CHIP SMDAPTR3216SYCKLED YELLOW CLEAR CHIP SMDColorlessClear1.40mm x 1.60mm45684 - Immediate$1.73View Details
LED BLUE CLEAR CHIP SMD BOT ENTAPTR3216QBC/DLED BLUE CLEAR CHIP SMD BOT ENTColorlessClear1.40mm x 1.60mm34883 - Immediate$3.95View Details
LED GREEN CLEAR 2SMD BOTTOM ENTAPTR3216ZGCKLED GREEN CLEAR 2SMD BOTTOM ENTColorlessClear1.60mm x 1.40mm16512 - Immediate$4.12View Details
LED BLUE CLEAR SMD BOTTOM ENTAA3528QBS/D09LED BLUE CLEAR SMD BOTTOM ENTColorlessClear2.40mm Dia2954 - Immediate$4.61View Details
LED RED CLEAR SMDAA3528SECKT/J309LED RED CLEAR SMDColorlessClear2.40mm Dia8619 - Immediate$5.52View Details
LED ORANGE CLEAR SMD BOTTOM ENTAA3528SECKT09LED ORANGE CLEAR SMD BOTTOM ENTColorlessClear2.40mm Dia15685 - Immediate$5.52View Details
LED RED CLEAR SMDAA3528SURCKT09LED RED CLEAR SMDColorlessClear2.40mm Dia76986 - Immediate$4.61View Details
LED YELLOW CLEAR SMDAA3528SYCKT/J309LED YELLOW CLEAR SMDColorlessClear2.40mm Dia1224 - Immediate$5.52View Details
LED YELLOW CLEAR SMDAA3528SYCKT09LED YELLOW CLEAR SMDColorlessClear2.40mm Dia69838 - Immediate$4.61View Details
LED GREEN CLEAR SMD BOTTOM ENTAA3528ZGCKT09LED GREEN CLEAR SMD BOTTOM ENTColorlessClear2.40mm Dia12997 - Immediate$5.93View Details
LED RGB CLEAR SMDAAA3528RBGS/08-09LED RGB CLEAR SMDColorlessClear2.40mm Dia6388 - Immediate$11.69View Details
LED GRN/RED CLEAR SMD BOTTOM ENTAAA3528SURKCGKC09LED GRN/RED CLEAR SMD BOTTOM ENTColorlessClear2.40mm Dia19073 - Immediate$5.02View Details
LED GREEN/RED CLEAR SMDAPTB3212SURKCGKC-01LED GREEN/RED CLEAR SMDColorlessClear1.40mm x 1.25mm3423 - Immediate$4.94View Details
LED GREEN/RED CLEAR 1206 SMDAPTBD3216SURKCGKC-01LED GREEN/RED CLEAR 1206 SMDColorlessClear1.60mm Dia3328 - Immediate$5.02View Details
LED RED/YLW CLEAR 1206 SMDAPTBD3216SURKSYKC-01LED RED/YLW CLEAR 1206 SMDColorlessClear1.60mm Dia0 - Immediate$4.28View Details
LED GREEN CLEAR 1206 SMDAPTL3216CGCK-01LED GREEN CLEAR 1206 SMDColorlessClear1.10mm Dia10190 - Immediate$3.05View Details
LED BLUE CLEAR 1206 SMDAPTL3216QBC/D-01LED BLUE CLEAR 1206 SMDColorlessClear1.10mm Dia861 - Immediate$3.95View Details
LED ORANGE CLEAR 1206 SMDAPTL3216SECK-01LED ORANGE CLEAR 1206 SMDColorlessClear1.10mm Dia3255 - Immediate$3.05View Details
Published: 2019-07-29
