LT3756-Slide8

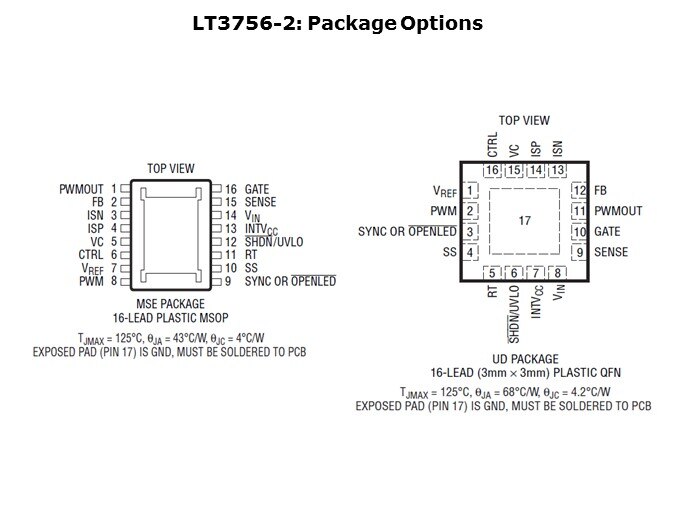

The LT3756-2 is available in both a leaded thermally enhanced MSOP-16 package as well as a 3mm x 3mm DFN-16 package. Both packages offer very compact foot prints with excellent thermals. Many commercial applications want to minimize the packages footprint whereas many industrial and automotive designs prefer the ease of manufacturability afforded by the leaded MSOP-16E package.

PTM Published on: 2011-05-13
