Bluetooth Modules and Turnkey Solutions Slide 7

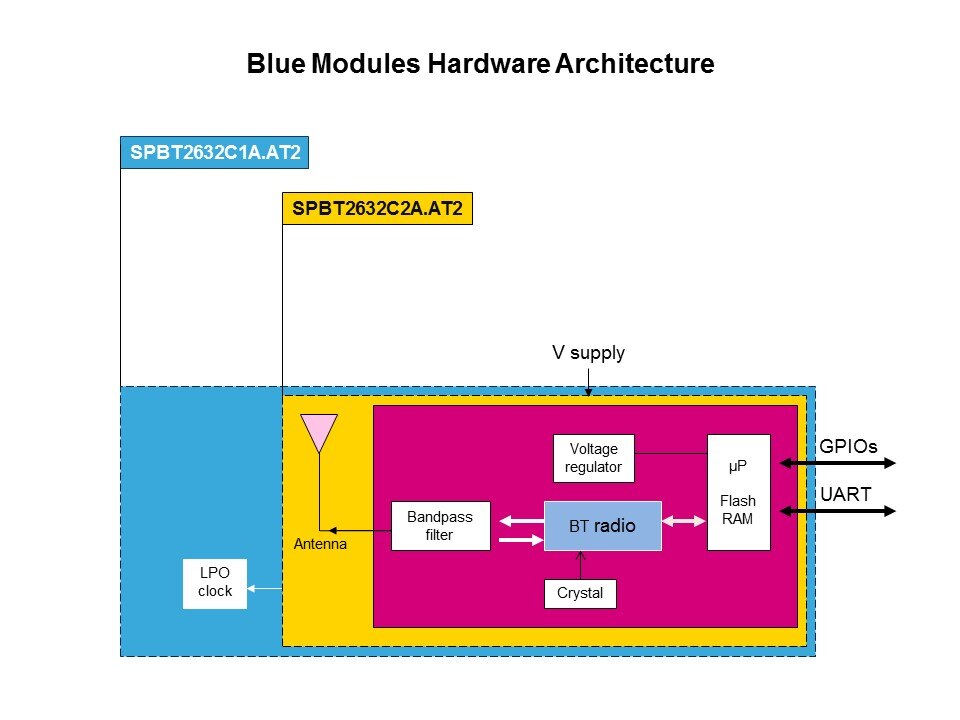

The hardware architecture is shown on this slide to clearly identify the modular structure interconnecting ST Blue modules. The basic module is the SPBT2532 with external antenna, this module implements a full Bluetooth module embedding an processor, a Bluetooth radio and ancillary circuitry such as crystal, voltage regulator, and filter balun. On that basis, adding the antenna is the SPBT2632C2A. The final step is adding the LPO clock and a more powerful antenna to result in the SPBT2632C1A module.
