GWS250-Slide4

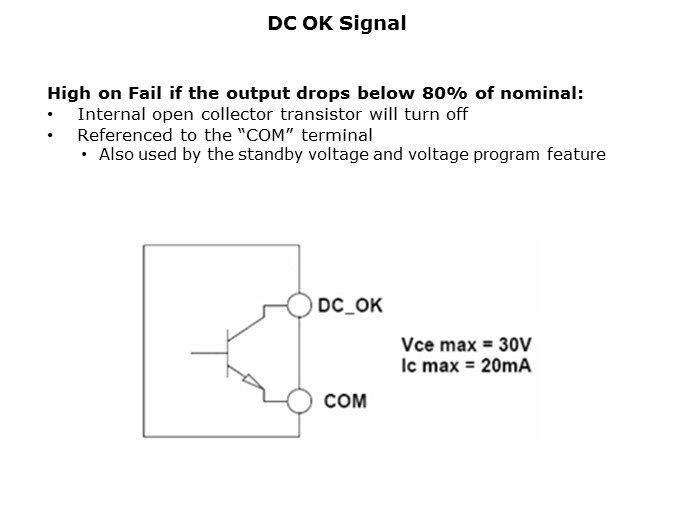

A “DC OK” signal is provided which is normally low; if the power supply output drops below 80% of nominal, the “DC OK” signal will go high. The signal is referenced to COM along with the standby voltage and output voltage program feature.

PTM Published on: 2011-09-02
