GWS250-Slide3

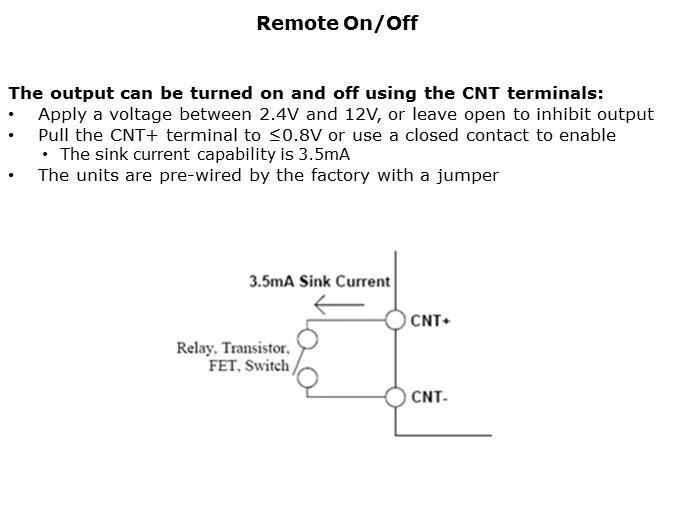

The output voltage can be remotely turned ON and OFF using the CNT terminals. Apply a voltage or leave the CNT terminals open circuit to inhibit, turn OFF, the output. To turn the output ON, pull low or short with a closed contact to enable the output voltage. The GWS is shipped from the factory with the CNT terminals jumpered to allow immediate use.

PTM Published on: 2011-09-02
