MAX11300 Programmable Mixed Signal IO Pt 3 Slide 15

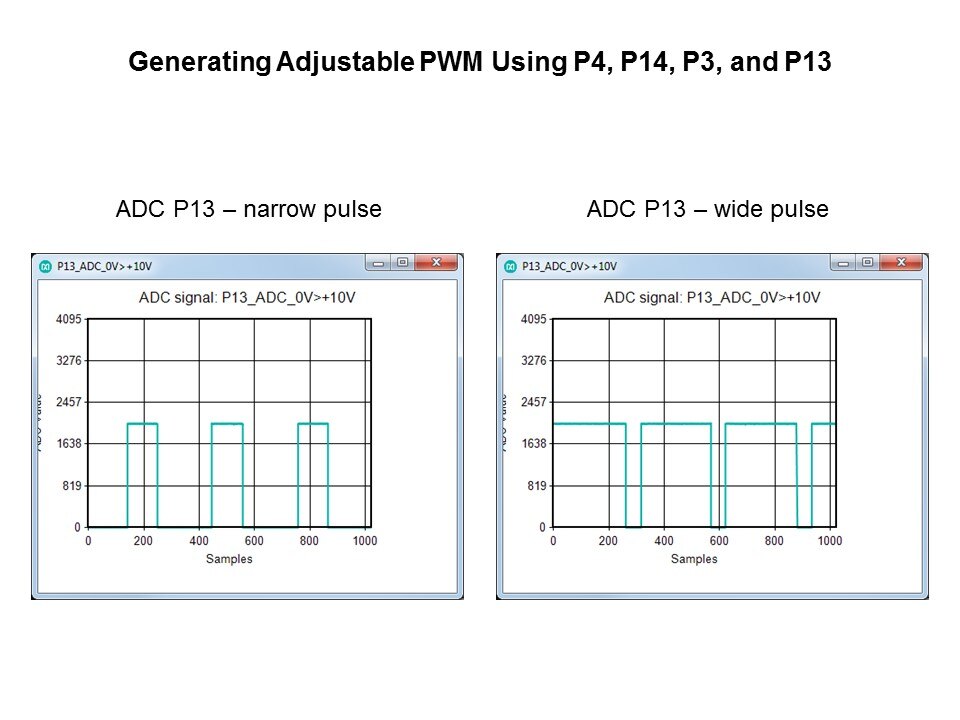

The Munich GUI is used to create the sawtooth waveform for DAC on P4. Using a potentiometer, this level is fed to level-translator (P14) whose output (P3) is fed into an ADC (P13) where it is measured. Essentially this has created an adjustable pulse-width by using the potentiometer.
PTM Published on: 2014-10-23
