            Si720x Hall-Effect Magnetic Position Sensor
                    Silicon Labs presents a switch/latch Hall-effect magnetic position sensor

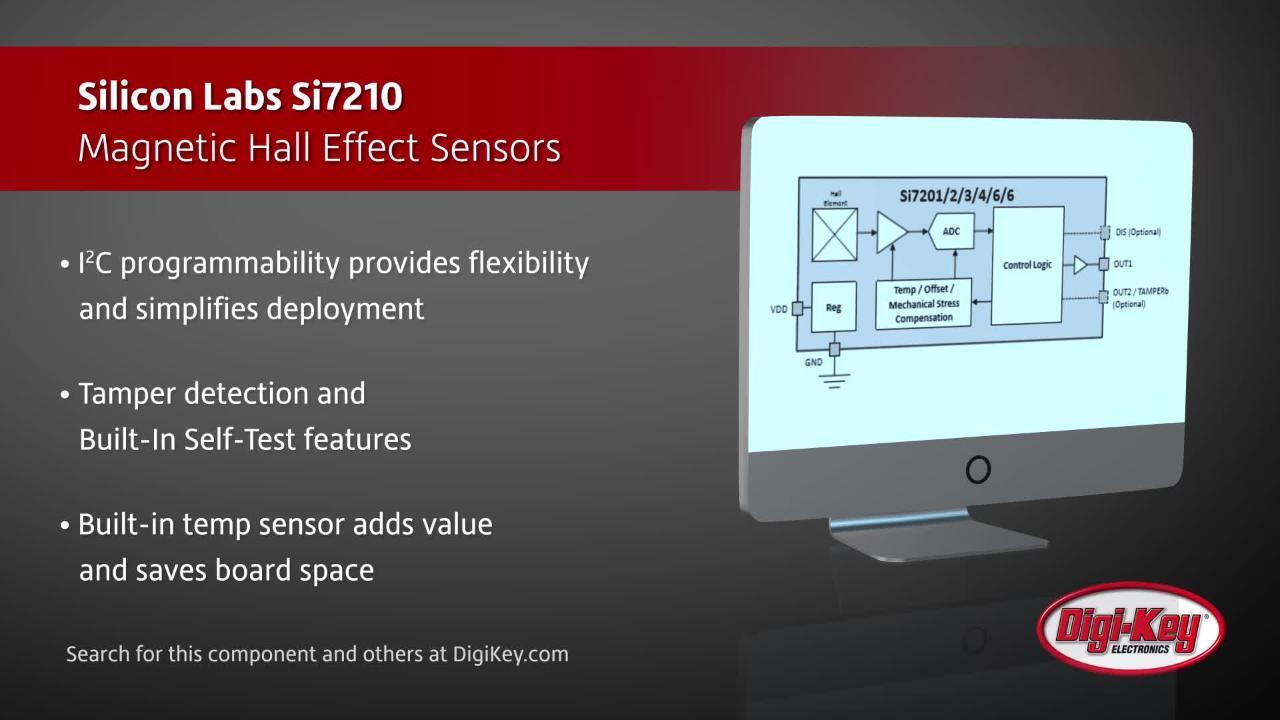

Image of Silicon Labs Si720x Hall Effect Magnetic Position Sensor The Si7201/2/3/4/5/6 family of Hall-effect magnetic sensors and latches from Silicon Labs combines a chopper-stabilized Hall element with a low-noise analog amplifier, 13-bit analog-to-digital converter, and flexible comparator circuit. The Si720x family incorporates digital signal processing to provide precise compensation for temperature and offset drift. Compared with existing Hall-effect sensors, the Si720x family provides a minimum field strength of <1.1 mT sensitivity, which enables use with larger air gaps and smaller magnets. For battery powered applications, the Si720x family offers very low power consumption to improve operating life. The Si720x devices are offered in 3-pin SOT23 and TO-92 packages.

Features
Low 400 nA typical current consumption High-sensitivity Hall-effect sensor Maximum BOP operating point/minimum field strength of <1.1 mT Omnipolar or unipolar operation Integrated digital signal processing for temperature and offset drift compensation		Selectable / programmable sensitivity, hysteresis, output polarity, and sample rate Sensitivity drift < ±3% over temperature Wide power supply voltage 1.7 V to 5.5 V 3.3 V to 26.5 V
Applications
Replacement of reed switches in consumer, automotive, and security applications Automotive position sensing of HVAC valve, head rest, seat track, side mirrors, sunroof, door locks, and other mechanical devices General-purpose mechanical position sensing		BLDC motor control Camera image stabilization, zoom, and autofocus Fluid level sensing, control knobs, and selector switches

Development Tool

	Image	Manufacturer Part Number	Description	Available Quantity	Price	View Details
		SI72XX-EVAL-KIT	SI72XX HALL EFFECT MAGNETIC SENS	0 - Immediate	See Page for Pricing	View Details

Si720x Hall-Effect Magnetic Position Sensor

Manufacturer Part Number	Description	Polarization	Sensing Range	Available Quantity	Price	View Details
SI7201-B-00-FV	MAGNETIC SWITCH OMNIPOL SOT23-3	North Pole, South Pole	±1.1mT Trip, ±0.2mT Release	0 - Immediate	$4.83	View Details
SI7201-B-01-FV	MAGNETIC SWITCH OMNIPOL SOT23-3	North Pole, South Pole	±1.1mT Trip, ±0.2mT Release	59 - Immediate	$9.44	View Details
SI7201-B-02-FV	MAGNETIC SWITCH OMNIPOL SOT23-3	North Pole, South Pole	±0.9mT Trip, ±0.2mT Release	82 - Immediate	$10.76	View Details
SI7201-B-03-IV	MAGNETIC SWITCH OMNIPOL SOT23-3	North Pole, South Pole	±0.9mT Trip, ±0.2mT Release	604 - Immediate	$8.70	View Details
SI7201-B-04-IV	MAGNETIC SWITCH OMNIPOL SOT23-3	North Pole, South Pole	±1.4mT Trip, ±0.2mT Release	1527 - Immediate	$7.88	View Details
SI7201-B-05-IV	MAGNETIC SWITCH OMNIPOL SOT23-3	North Pole, South Pole	±2.0mT Trip, ±0.6mT Release	334 - Immediate	$7.88	View Details
SI7201-B-06-IV	MAGNETIC SWITCH OMNIPOL SOT23-3	North Pole, South Pole	±2.0mT Trip, ±0.6mT Release	2066 - Immediate	$7.88	View Details
SI7201-B-07-IV	MAGNETIC SWITCH OMNIPOL SOT23-3	North Pole, South Pole	±2.0mT Trip, ±0.6mT Release	11 - Immediate	$7.88	View Details
SI7202-B-00-FV	MAGNETIC SWITCH LATCH SOT23-3	North Pole, South Pole	0.7mT Trip, -0.7mT Release	8 - Immediate	$5.50	View Details
SI7202-B-01-IV	MAGNETIC SWITCH LATCH SOT23-3	North Pole, South Pole	1.5mT Trip, -1.5mT Release	55 - Immediate	$5.83	View Details
SI7203-B-00-FV	MAGNETIC SWITCH OMNIPOL SOT23-5	North Pole, South Pole	±1.1mT Trip, ±0.2mT Release	130 - Immediate	$10.18	View Details
SI7204-B-00-FV	MAGNETIC SWITCH LATCH SOT23-5	North Pole, South Pole	0.6mT Trip, -0.6mT Release	272 - Immediate	$7.88	View Details
SI7205-B-00-IV	MAGNETIC SWITCH OMNIPOL SOT23-3	North Pole, South Pole	±3mT Trip, ±0.8mT Release	0 - Immediate	See Page for Pricing	View Details
SI7206-B-00-IV	MAGNETIC SWITCH LATCH SOT23-3	North Pole, South Pole	1.5mT Trip, -1.5mT Release	0 - Immediate	See Page for Pricing	View Details
SI7210-B-00-IV	SENSOR HALL EFFECT I2C SOT23-5	I2C	±20mT	1240 - Immediate	$11.91	View Details
