GWS500-Slide4

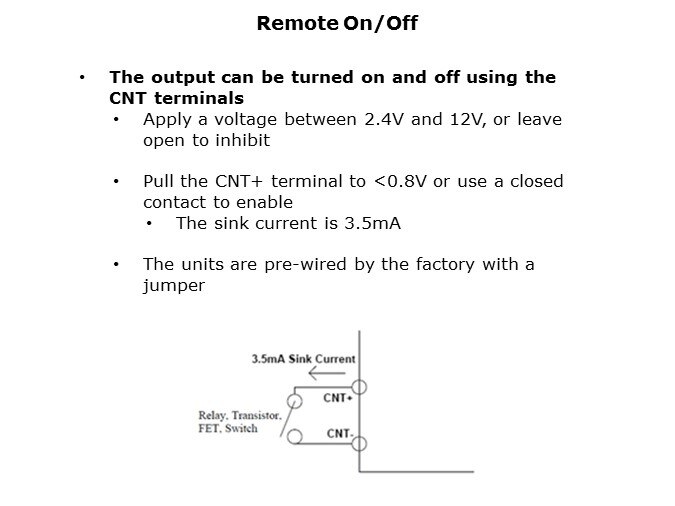

The output voltage can be turned on and off using the CNT terminals. Apply a voltage, or leave open circuit to inhibit the output and pull low or short with a closed contact to enable (turn on) the output voltage. The GWS500 is shipped from the factory with the CNT terminals jumpered for immediate use.
