GWS500-Slide13

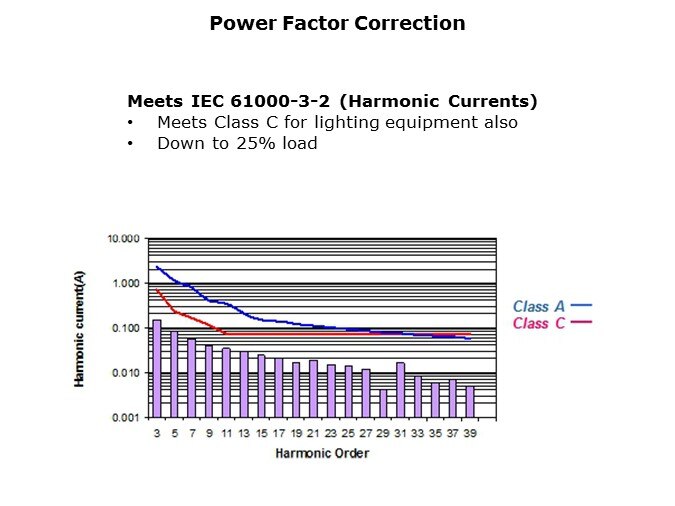

The GWS500 has PFC (Power Factor Correction) circuitry allowing it to meet the European standard IEC 61000-3-2. The plot shown here for the series not only meets Class A, which is used for professional equipment, but also the tougher Class C that applies to lighting equipment. Again the series will pass even at 25% load.

PTM Published on: 2012-10-18
