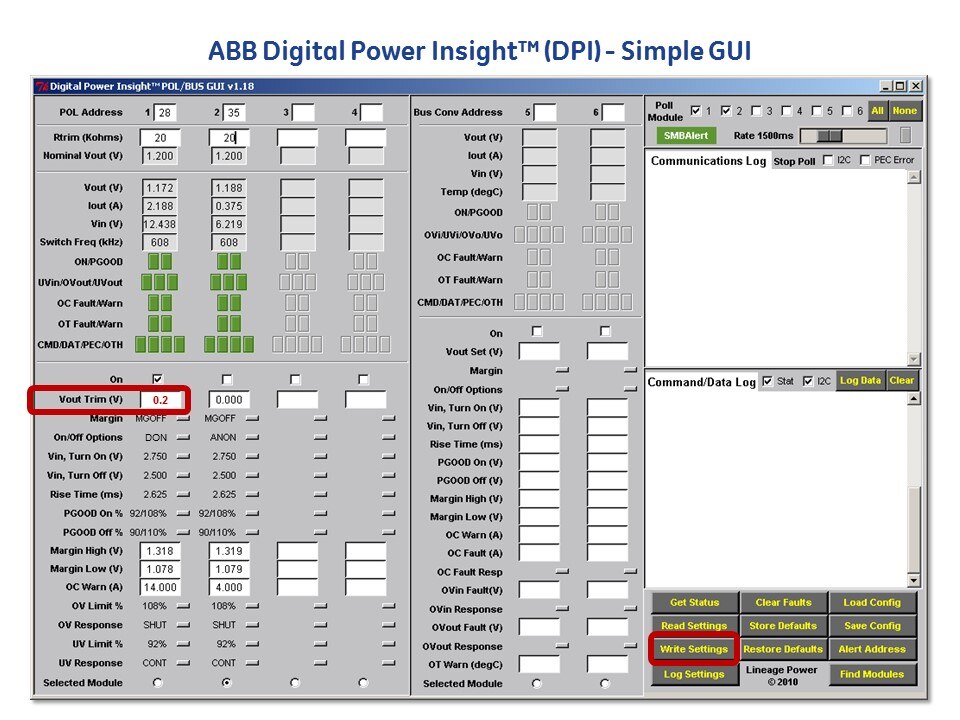

vout trim 0.2
The output voltage can be changed on the fly. Remember that the output voltage is 1.2 V at 2 A with a resistive load. The Trim voltage is set to a default of 0. To trim up by 0.2 V, enter 0.2 in the “V out Trim” box and click on “Write Settings”.
