A495x-Slide16

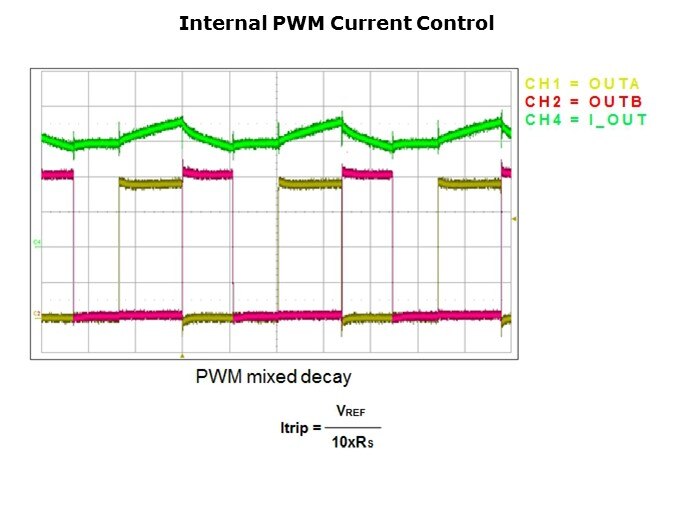

In the display on this slide, a couple periods of the PWM current control are shown. Channel 1 is the voltage at output A and channel 2 is the voltage at output B, the output current is shown on channel 4. The flow of current is from output A to output B. The PWM current controller operates in 50% mixed decay.

PTM Published on: 2012-08-08
