ANFCA-Slide7

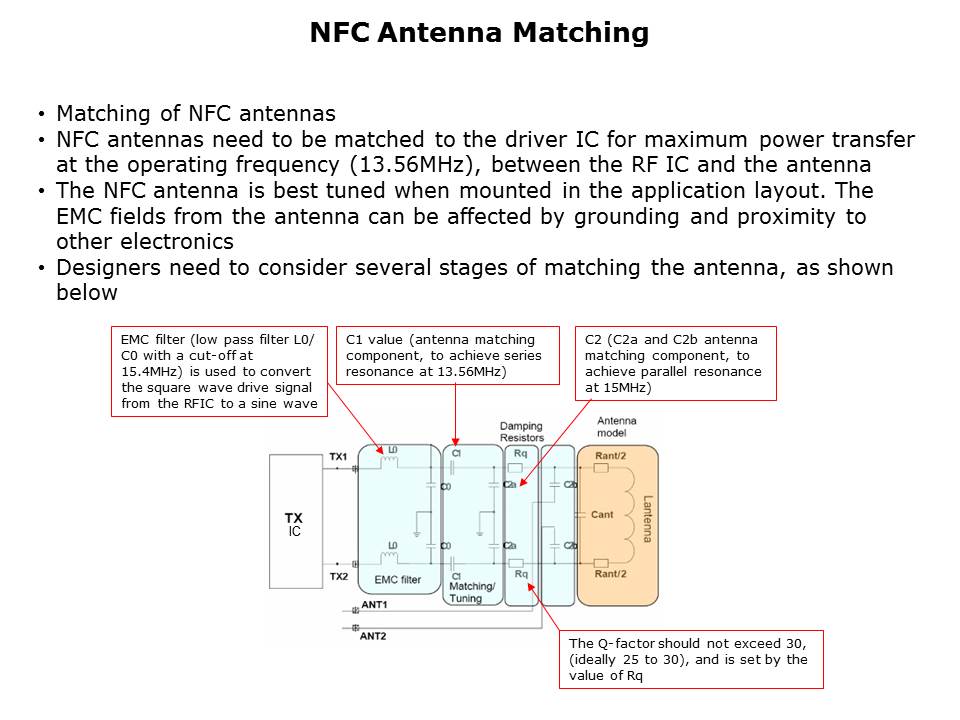

The diagram above shows the matching between the RFIC and NFC antenna including a low pass filter to convert square wave output of IC to sine wave, and series to parallel matching and Q damping networks that optimize the signal to the antenna.

PTM Published on: 2014-11-26
