ANFCA-Slide6

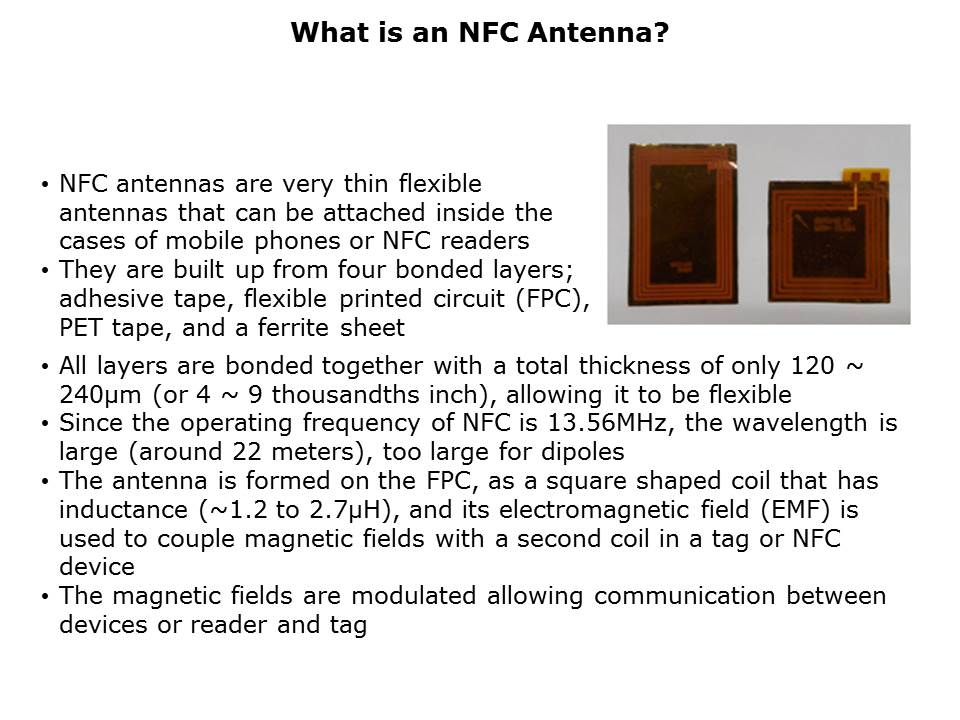

A NFC antenna is an FPC with a ferrite backing to concentrate the EMF field produced by the coil. It is not really an antenna in the true sense but utilizes loosely coupled magnetic fields between the NFC coils to allow communication.

PTM Published on: 2014-11-26
