Thermistor Resistor Network Simulation Tool Slide 13

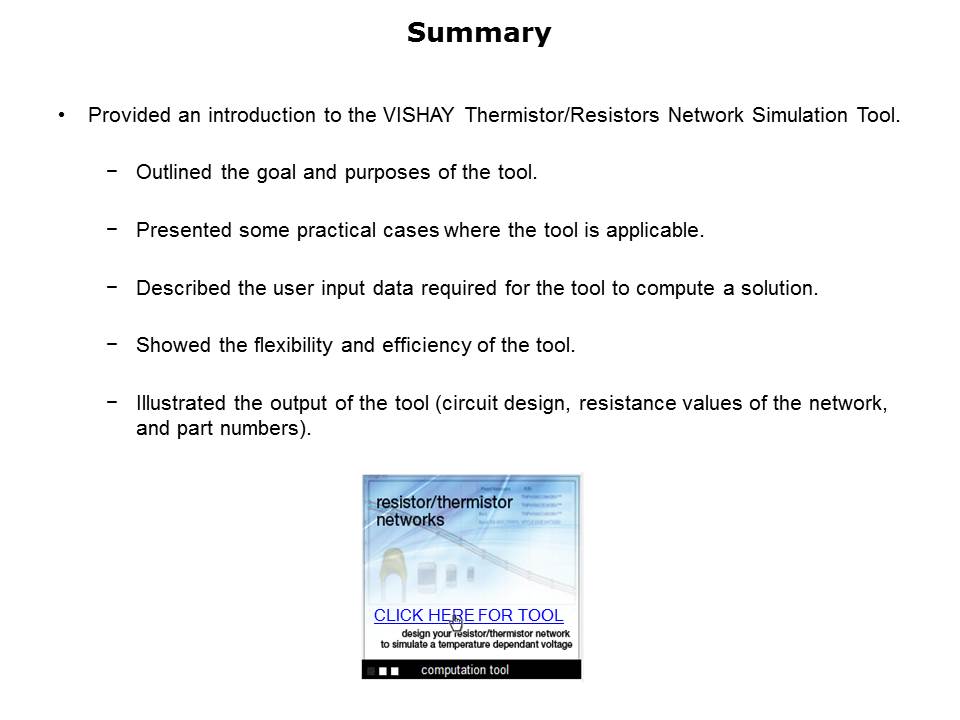

In summary, this product training module has provided an introduction to the VISHAY Thermistor/Resistors Network Simulation Tool. The goal and purposes of the tool were outlined and some practical cases where the tool is applicable were presented. The flexibility and efficiency of the tool were demonstrated, beginning with a user input and concluding with a concrete circuit design utilizing specific VISHAY part numbers.

PTM Published on: 2013-10-17
