TMC2660-PA Slide 13

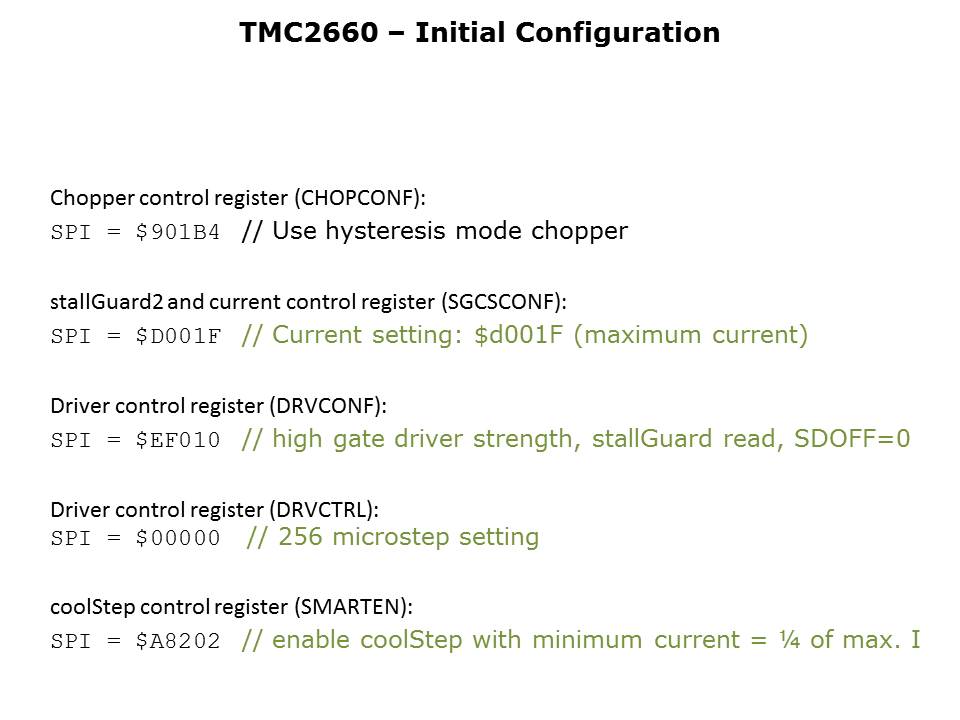

In total TMC2660 has five configuration/control registers. These Registers have to be initialized properly prior to operation. The sequence on this slide is an example of enabling the driver and initializing the chopper with a first parameter set to start right away.
