Understanding and Using Current Transformers Slide 7

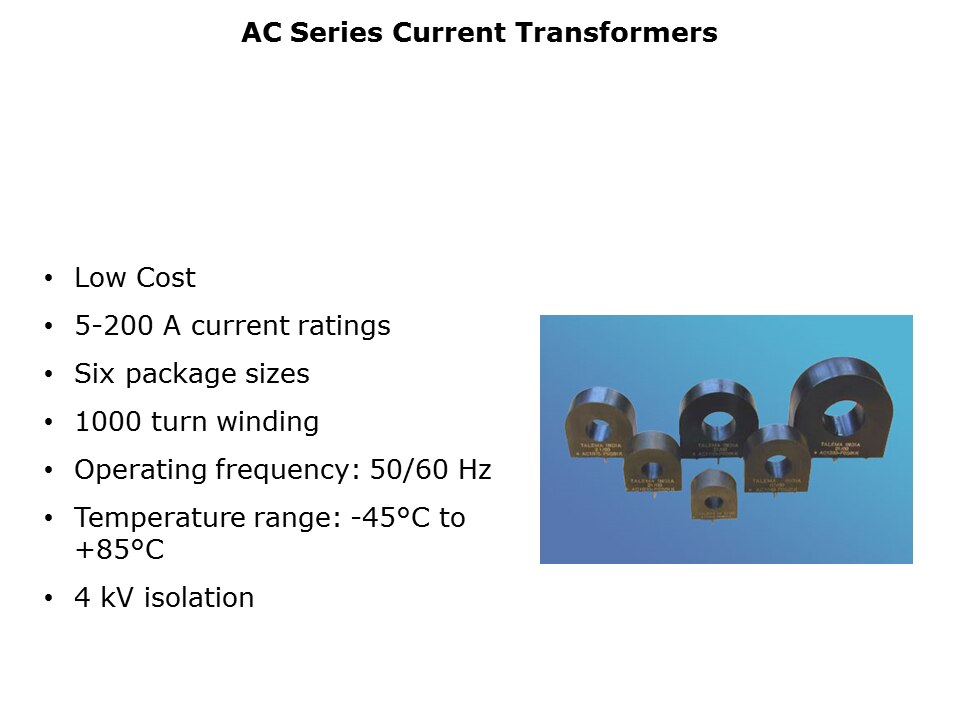

The popular AC series is a low cost type suitable for current indication, overload sensing, load drop sensing, and general purpose measurement application. All CTs have a nominal 1000 turns winding with six package sizes covering a wide range of possible input current up to 200 A. Isolation of 4 kV is guaranteed between the secondary winding and uninsulated primary conductor.
