Understanding and Using Current Transformers Slide 14

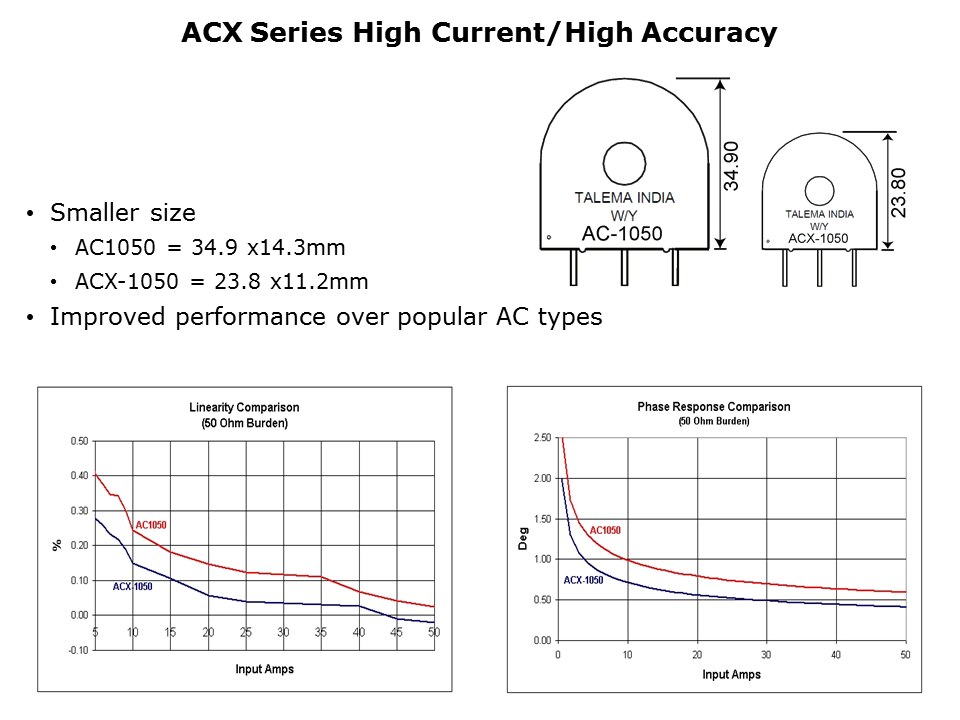

The graphs on this slide compare linearity and phase response between the ACX-1050 and the similarly rated AC-1050. Due to the G.O.S.S. core and higher number of secondary winding turns, the ACX-1050 delivers superior linearity and phase response in a smaller package.
