Understanding and Using Current Transformers Slide 12

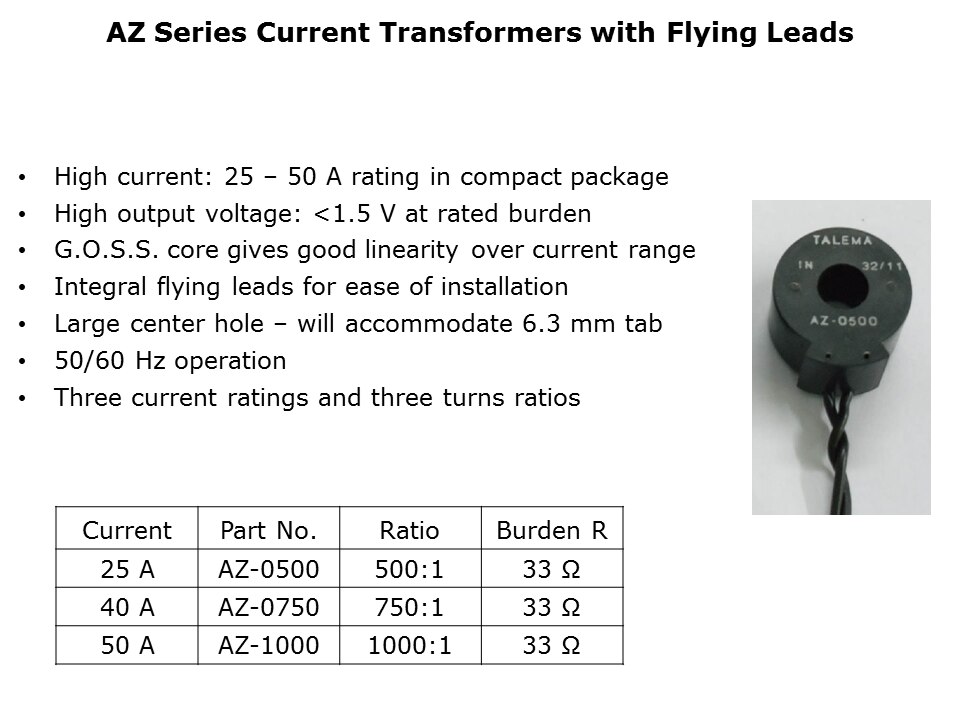

For applications where PCB mounting is not possible, Talema offers the AZ series current transformers with stranded wire leads. The large center hole allows for the CT to be slipped onto conductors up to 0.25” diameter. Smaller wires may be looped multiple times through the aperture to provide the desired output current when used on lower current lines.

PTM Published on: 2016-02-24
