ADC-Slide8

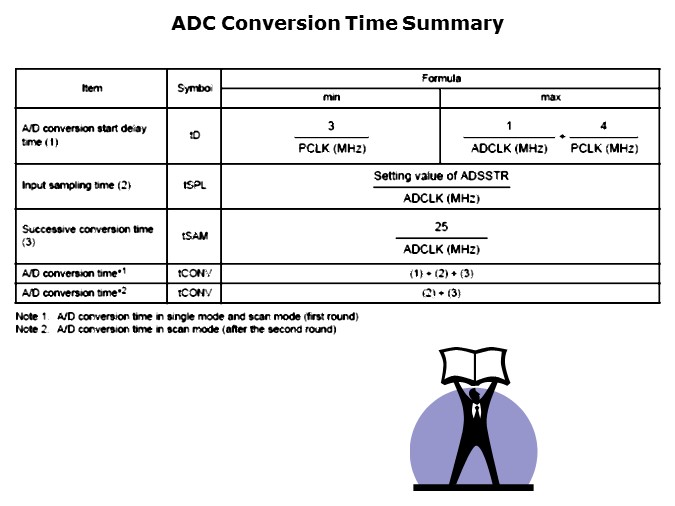

The table on this page is provided in the hardware manual. It summarizes the various times required to complete an ADC conversion. As can be seen in the table, the A/D conversion delay is not included except in single mode and the first conversion of a scan.

PTM Published on: 2011-11-10
