ADC-Slide1

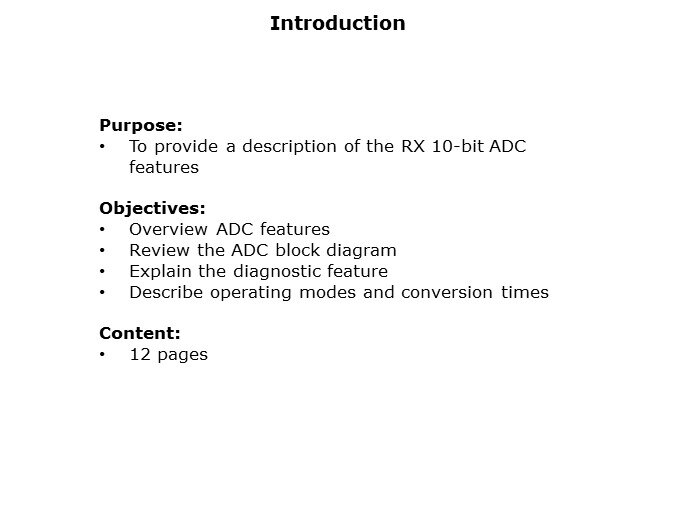

Welcome to the Renesas RX 10-Bit ADC product training module. This presentation will describe some of the specific features of the 10-bit Analog to Digital Converter (ADC) or ADA as it is referred to in the hardware manual. This presentation will also provide an overview of the block diagram, operating modes, conversion times, the self diagnostic feature, and sampling time adjustments.

PTM Published on: 2011-11-10
