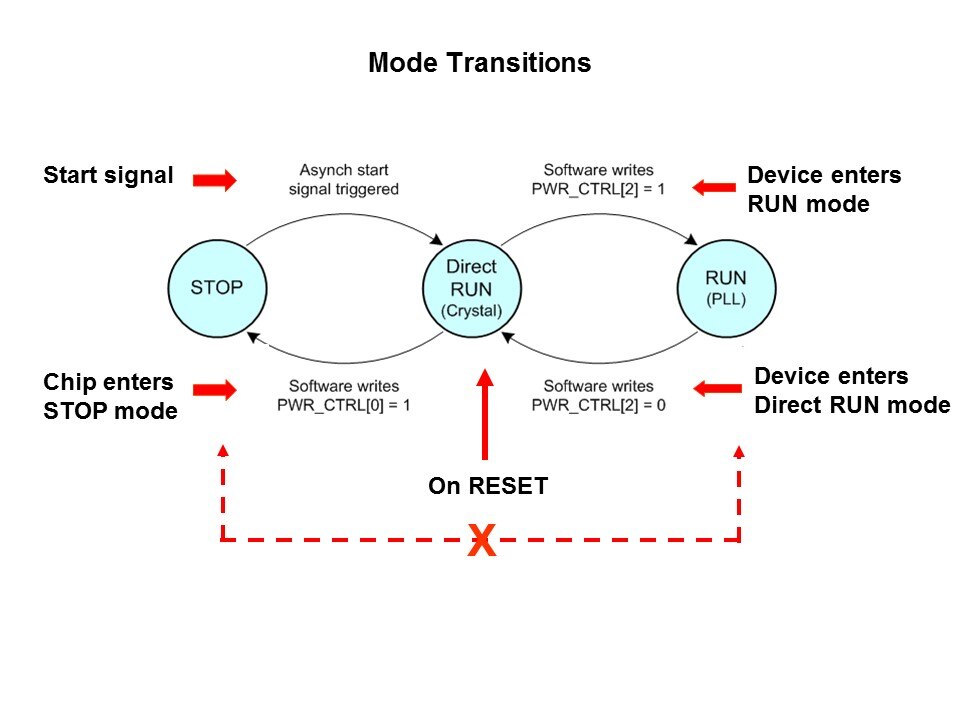

On reset, the device will come up in Direct RUN mode. From here, the device can switch to either STOP or RUN mode. Assume the device wants to switch to RUN mode. This can be achieved in software by writing 1 to bit 2 of the power control register. By resetting this bit, the device will reenter Direct Run mode. The device enters STOP mode by setting bit 0 of the same register. Wakeup from STOP mode is configured in the start controller. It is not possible to switch directly from STOP to RUN mode, and vice versa.
