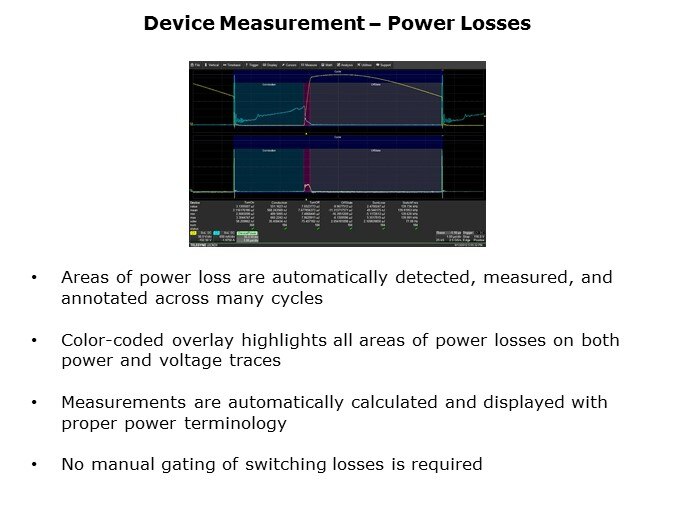

Areas of power loss are automatically detected by the Power Analysis software. These areas are measured and annotated across many cycles. Color-coded overlays are provided to highlight all areas of power losses on both power and voltage traces. All measurements of power losses are automatically calculated and displayed with proper power-related terminology. No manual gating of switching losses is required.
