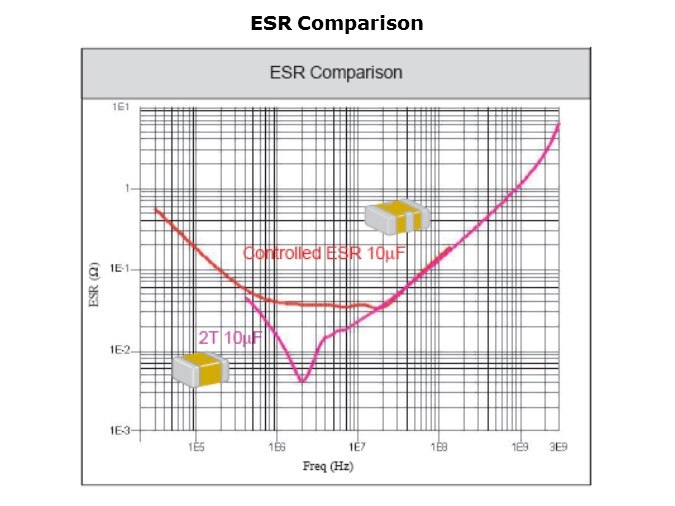

Here a TDK controlled ESR capacitor is compared with a traditional 2 terminal MLCC. Generally the ESR is the same except at the self resonant frequency where the controlled ESR capacitor’s ESR is slightly higher resulting in an “anti-resonant” capacitor.
