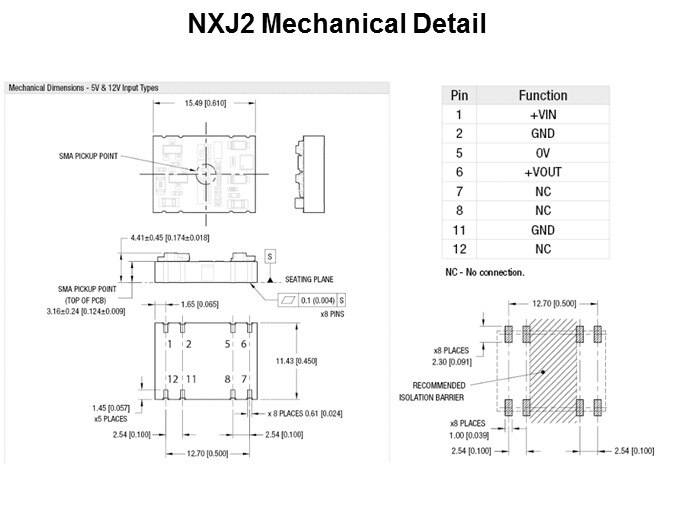

Shown here is the mechanical detail of the NXJ2 series which has two different layouts, depending on the model chosen. Shown here are the 5 V and 12 V input types with the recommended pad layout. Solid works and 3D models are available from Murata’s website.
