TantCap-Slide13

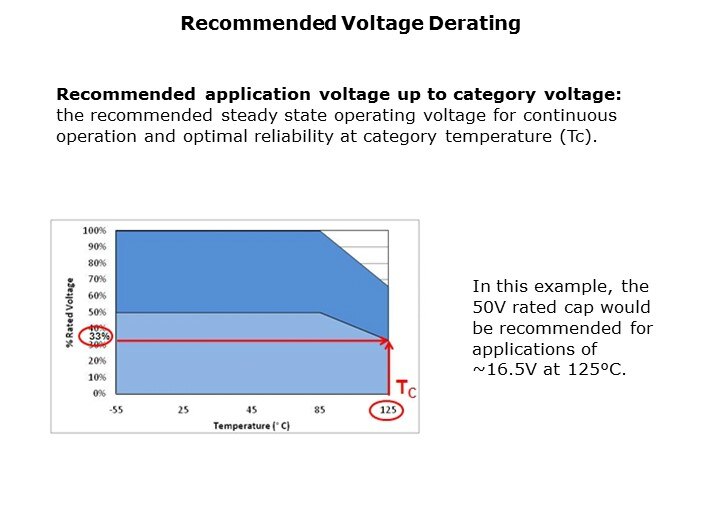

The next step is to factor in a voltage derating up to the category temperature. A component’s recommended application voltage up to category voltage is the recommended steady state operating voltage for continuous operation and optimal reliability at category temperature. In the example shown on this slide the 50V rated capacitor would be recommended for applications of approximately 16.5V at 125ºC.

PTM Published on: 2011-10-11
