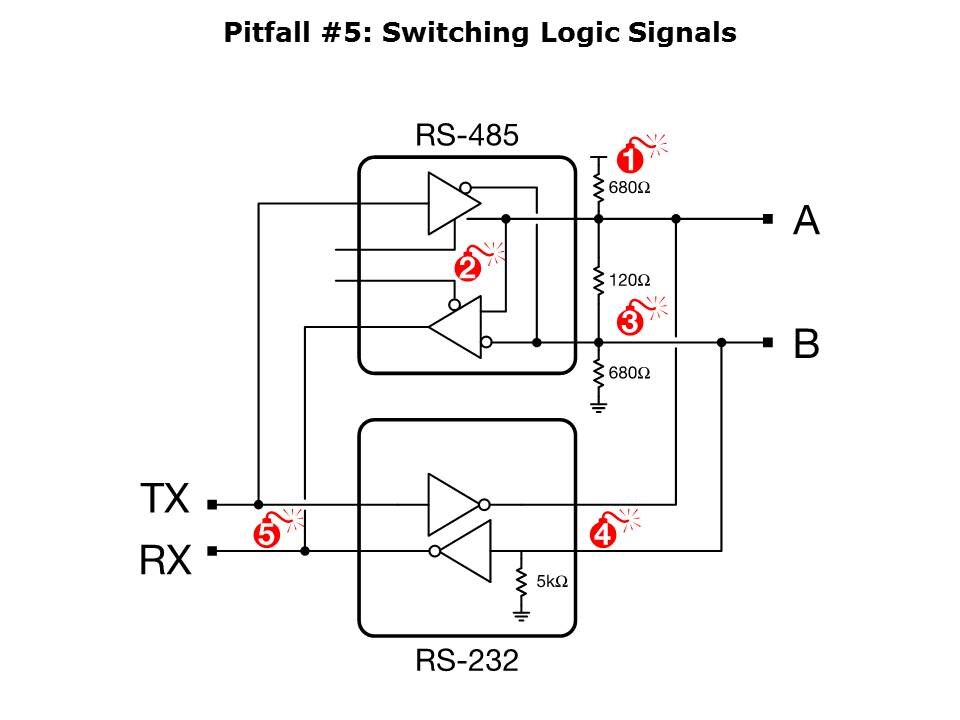

Pitfall #5: If multiple logic signals are going to be tied together, the inactive receiver outputs need to be set to high impedance or tri-state, otherwise they will conflict with each other for control of the logic levels.
