CLSA-Slide4

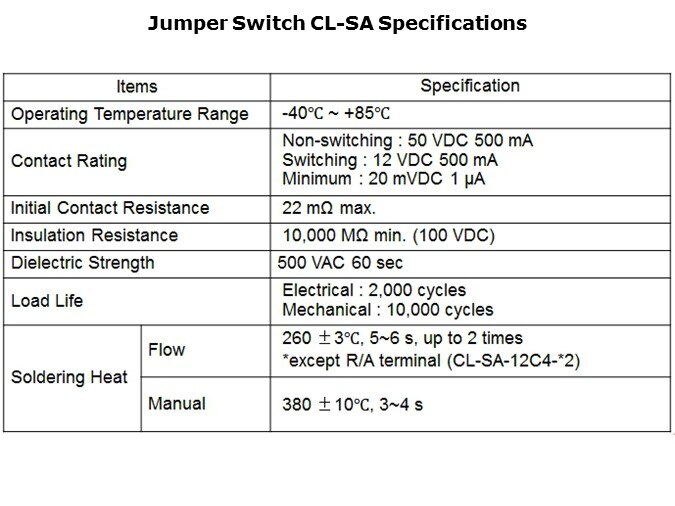

The contact rating is 50VDC 500mA non-switching and 12VDC 500mA switching. Minimum contact rating is 20mVDC 1μA. Electrical life is 2,000 cycles and mechanical life is 10,000 cycles.

PTM Published on: 2013-08-14
