Datamate J-Tek 連接器具有高可靠性

Harwin 的 2 mm 間距範圍可提供牢固穩定的連接

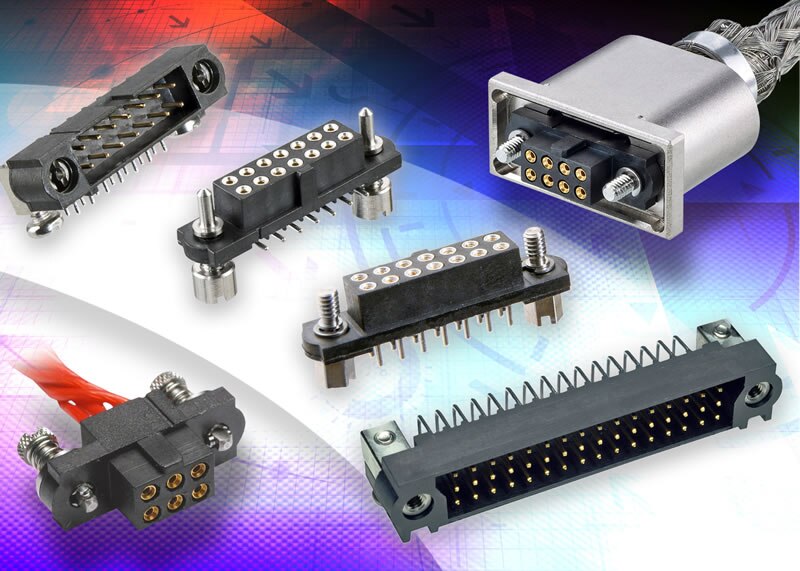

Harwin 的 Datamate J-Tek 連接器圖片Harwin 的 Datamate J-Tek 系列高可靠度連接器在極端條件、振動、衝擊和高工作溫度下的效能均有經過實證的良好記錄。採用不鏽鋼支柱螺絲進行設計，以確保牢固的配接完整性並提升防拉能力。利用 Harwin 額定電流為 3 A 的 4 葉鈹銅鍍金觸點。當空間極小且需要高效能時，Datamate J-Tek 2 mm 間距線是完美的選擇。J-Tek 連接器提供雙排和三排選項，多達 96 個觸點。備有多種支柱螺絲設計，包括 101-lok、反向固定、內六角、六角開槽和導引銷選項，可提高設計靈活性。透過相容的金屬背殼防止 RFI/EMI 干擾。

特點
  • 每個觸點 3 A
  • 4 指鈹銅／鍍金母端觸點
  • 可承受極端的衝擊 (100G 持續 6 毫秒) 和振動 (10G 持續 6 小時)
  • 不鏽鋼支柱螺絲
  • 耐用度：500 次操作
  • 工作溫度：-55°C 至 +125°C
  • 工作電壓：800 V AC/DC
  • Ul94V-0 等級
  • 具有軍事與航太應用的實證紀錄
  • 非常適合 COTS 應用
  • 絕緣電阻：在 500 VDC 時最小值為 100 MΩ
  • 接觸電阻：最大 25 mΩ
  • 輕巧金屬背殼可用於屏蔽

Contacts

圖片製造商零件編號說明現有數量價格查看詳情
CONN PIN 24-28AWG CRIMP GOLDM80-1950005CONN PIN 24-28AWG CRIMP GOLD3866 - 即時供貨$16.59查看詳情
CONN PIN 22AWG CRIMP GOLDM80-1940005CONN PIN 22AWG CRIMP GOLD3408 - 即時供貨$16.59查看詳情
FEMALE LARGE BORE CRIMP CONTACTM80-0110001FEMALE LARGE BORE CRIMP CONTACT12260 - 即時供貨$5.99查看詳情
CONN SOCKET 22AWG CRIMP GOLDM80-0110005CONN SOCKET 22AWG CRIMP GOLD34589 - 即時供貨$6.08查看詳情
CONN SOCKET 24-28AWG CRIMP GOLDM80-0130001CONN SOCKET 24-28AWG CRIMP GOLD6615 - 即時供貨$6.08查看詳情
CONN SOCKET 24-28AWG CRIMP GOLDM80-0130005CONN SOCKET 24-28AWG CRIMP GOLD51047 - 即時供貨$6.08查看詳情
CONN SOCKET 28-32AWG CRIMP GOLDM80-0190005CONN SOCKET 28-32AWG CRIMP GOLD68125 - 即時供貨$11.17查看詳情
CONN SOCKET 22AWG CRIMP GOLDM80-2060005CONN SOCKET 22AWG CRIMP GOLD50999 - 即時供貨$13.79查看詳情
CONN SOCKET 22AWG CRIMP GOLDM83-0110005CONN SOCKET 22AWG CRIMP GOLD1098 - 即時供貨$7.88查看詳情

Housings

圖片製造商零件編號說明現有數量價格查看詳情
CONN RCPT HSG 4POS 2.00MMM80-4140498CONN RCPT HSG 4POS 2.00MM1362 - 即時供貨$48.61查看詳情
CONN RCPT HSG 6POS 2.00MMM80-4140698CONN RCPT HSG 6POS 2.00MM1620 - 即時供貨$48.77查看詳情
CONN RCPT HSG 8POS 2.00MMM80-4140898CONN RCPT HSG 8POS 2.00MM2651 - 即時供貨$48.94查看詳情

Free Hanging, Panel Mount Kits

圖片製造商零件編號說明現有數量價格查看詳情
DATAMATE J-TEK DIL FEMALE SMALLM80-4862005ADATAMATE J-TEK DIL FEMALE SMALL134 - 即時供貨$365.88查看詳情
CONN RCPT 8POS CRIMP 22AWG GOLDM80-4800805CONN RCPT 8POS CRIMP 22AWG GOLD0 - 即時供貨$128.26查看詳情
CONN RCPT 8P CRIMP 24-28AWG GOLDM80-4610842CONN RCPT 8P CRIMP 24-28AWG GOLD2207 - 即時供貨$136.47查看詳情

Headers, Male Pins

圖片製造商零件編號說明現有數量價格查看詳情
CONN HEADER VERT 6POS 2MMM80-5000642CONN HEADER VERT 6POS 2MM1820 - 即時供貨$83.26查看詳情
CONN HEADER VERT 8POS 2MMM80-5000842CONN HEADER VERT 8POS 2MM814 - 即時供貨$85.23查看詳情
CONN HEADER VERT 10POS 2MMM80-5001042CONN HEADER VERT 10POS 2MM1066 - 即時供貨$87.28查看詳情

Headers, Receptacles, Female Sockets

圖片製造商零件編號說明現有數量價格查看詳情
CONN RCPT 26POS 0.079 GOLD PCBM80-4002642CONN RCPT 26POS 0.079 GOLD PCB1917 - 即時供貨$140.74查看詳情
CONN RCPT 96POS 0.079 GOLD PCBM83-LFT1F2N96-0000-000CONN RCPT 96POS 0.079 GOLD PCB36 - 即時供貨$923.41查看詳情
CONN RCPT 10POS 0.079 GOLD PCBM80-4001042CONN RCPT 10POS 0.079 GOLD PCB241 - 即時供貨$112.74查看詳情

Ready-made Cable Assemblies

圖片製造商零件編號說明現有數量價格查看詳情
CBL ASSY 2MM 6POS FMALE TO WIREM80-FE20668F2-0450LCBL ASSY 2MM 6POS FMALE TO WIRE4 - 即時供貨$542.66查看詳情
CBL ASSY 2MM 10POS FMALE TO WIREM80-FE21068F2-0450LCBL ASSY 2MM 10POS FMALE TO WIRE60 - 即時供貨$665.42查看詳情
CBL ASSY 2MM 12POS FMALE TO WIREM80-FE21268F2-0450LCBL ASSY 2MM 12POS FMALE TO WIRE0 - 即時供貨$810.43查看詳情

Jumper Wires, Pre-Crimped Leads

圖片製造商零件編號說明現有數量價格查看詳情
M80-011 SKT/FREE 22AWG 150MMM80-9100099M80-011 SKT/FREE 22AWG 150MM791 - 即時供貨$26.44查看詳情
F CBL CRMPD CONTACTM80-9110099F CBL CRMPD CONTACT1300 - 即時供貨$23.07查看詳情
F CBL CRMPD CONTACTM80-9140099F CBL CRMPD CONTACT1163 - 即時供貨$38.26查看詳情
F CBL CRMPD CONTACTM80-9150099F CBL CRMPD CONTACT849 - 即時供貨$30.71查看詳情
F CBL CRMPD CONTACTM80-9160099F CBL CRMPD CONTACT48 - 即時供貨$30.63查看詳情
F CBL CRMPD CONTACTM80-9190099F CBL CRMPD CONTACT303 - 即時供貨$36.70查看詳情
M80-011 SKT/SKT 22AWG 300MMM80-9220099M80-011 SKT/SKT 22AWG 300MM611 - 即時供貨$45.74查看詳情
F CBL CRMPD CONTACTM80-9230099F CBL CRMPD CONTACT106 - 即時供貨$39.58查看詳情

Accessories

圖片製造商零件編號說明現有數量價格
DIL FEMALE CRIMP HOOD KITM80-8801098DIL FEMALE CRIMP HOOD KIT80 - 即時供貨$38.26查看詳情
DIL FEMALE CRIMP HOOD KITM80-8801298DIL FEMALE CRIMP HOOD KIT57 - 即時供貨$38.43查看詳情
DIL FEMALE CRIMP HOOD KITM80-8802098DIL FEMALE CRIMP HOOD KIT78 - 即時供貨$40.73查看詳情

Tools

圖片製造商零件編號說明現有數量價格
DATAMATE CRIMP POSITIONERZ80-058DATAMATE CRIMP POSITIONER18 - 即時供貨$2,396.71查看詳情
SCREW DRIVER TOOL FOR J-TEKZ80-298SCREW DRIVER TOOL FOR J-TEK105 - 即時供貨$629.87查看詳情
POSITIONR M22520/2-01 MALE S-TEKZ80-193POSITIONR M22520/2-01 MALE S-TEK46 - 即時供貨$1,477.65查看詳情
TOOL INSERT/REMOVE FOR DATAMATEZ80-280TOOL INSERT/REMOVE FOR DATAMATE269 - 即時供貨$1,597.20查看詳情
TOOL INSTALL FOR S-TEK RECEPTZ80-300TOOL INSTALL FOR S-TEK RECEPT0 - 即時供貨$1,085.82查看詳情
POSTIONER FOR M80-2060005Z80-444POSTIONER FOR M80-206000525 - 即時供貨$1,447.11查看詳情
TOOL HAND CRIMPER SIDEM22520/2-01TOOL HAND CRIMPER SIDE49 - 即時供貨$8,271.27查看詳情
POSITIONER M22520/2-01 22-28AWGT5747POSITIONER M22520/2-01 22-28AWG44 - 即時供貨$1,527.08查看詳情
