Oura Ring Teardown (Gen 3 and 2)

3,095

2022-04-17 | By bekathwia

License: Attribution-NonCommercial-ShareAlike

I took apart the Oura Ring - both gen 3 and gen 2 devices. This wearable tracks your heart rate and movement and especially focuses on sleep tracking. The folks at Lumafield were kind enough to scan the rings and charging base before I hacked at them with cutting tools, so we can look at the inside of the device through digital imaging as well as under a microscope. Thanks to David Cranor for lending his electrical engineering expertise.

Tools used in this teardown:

Parts we could identify on the Gen 2 Oura ring:

Crystal Oscillator AЯO9C
Cyrstal Oscollator T320 Px55
Battery Management IC - Texas Instruments BQ25120A
2x Photodiodes
2x Green LEDs
Multi-chip LED - Red, Infrared

gen 2

Parts we could identify on the Gen 3 Oura ring:

3.7V 16mAh Lithium Battery - Grepow YE160723G
2x Photodiodes
2x Green LEDs
Multi-chip LED - Red, Infrared

gen 3

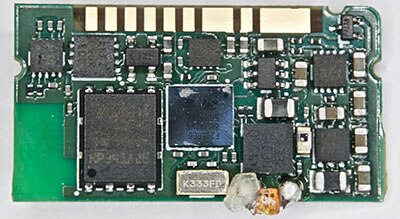

Parts we could identify on the charging base:

Crystal Resonator 13.5 A4L
Microcontroller
Flat Flex Connector

You can take a look at the CT scan of the Oura ring charging base on the Lumafield site (free account required). The scans of the rings required too much cleanup to make public.

To keep up with what I’m working on, follow me on YouTube, Instagram, Twitter, Pinterest, and subscribe to my newsletter.
