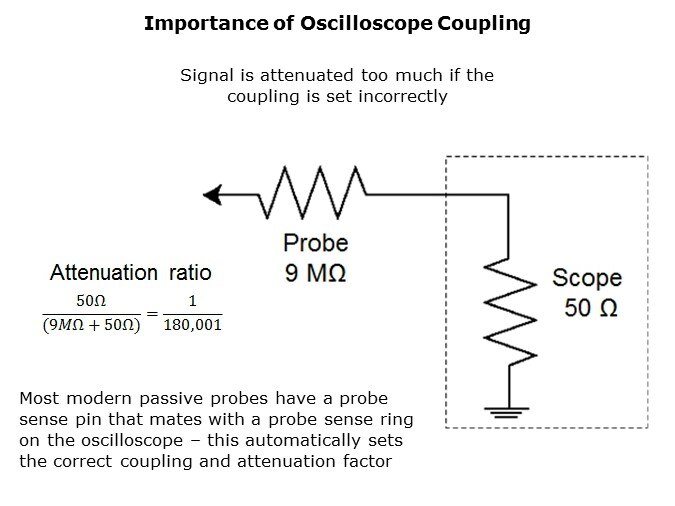

Oscilloscope coupling is an important consideration. The oscilloscope can have an internal 50Ω termination which could cause excessive attenuation if applied improperly. Most modern probes have a sense pin that mates with a sense ring on the scope. This will automatically set the correct coupling and attenuation factor.
PTM Published on: 2012-04-26
