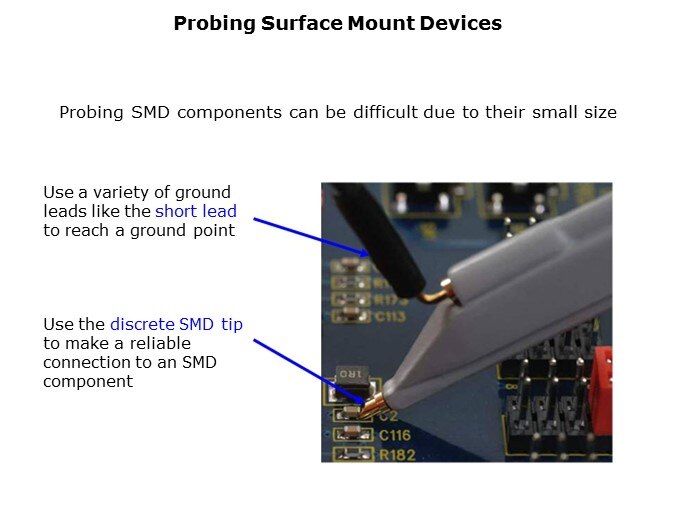

There is a wide variety of different pitch probe tips for SMD devices. As can be seen on this slide the SMD tip makes the connection to this chip capacitor, and the short lead is used to reach the ground point. The probe being used in this application is an active probe.
