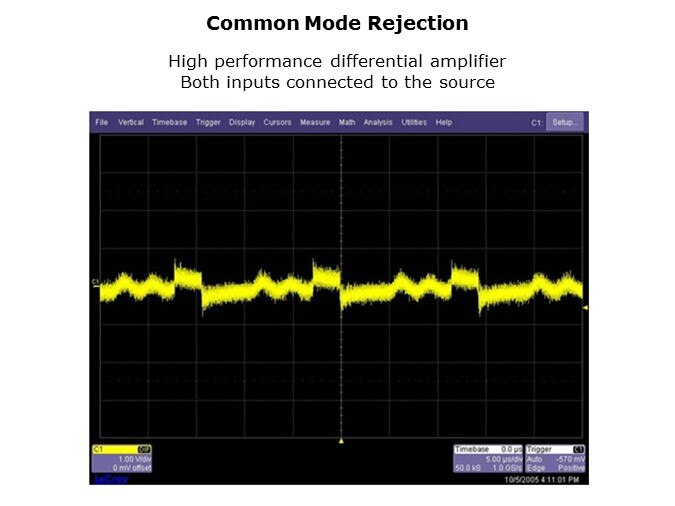

This slide shows a high performance differential amplifier with both inputs connected to the source. On the previous slide the scope is set to 1V per division, showing about 5V common mode signal. Using a high gain differential amplifier on the same signal the common mode voltage is greatly reduced. On this slide the scope is still set to 1V per division and the common mode is down to approximately 1V.
