lead config

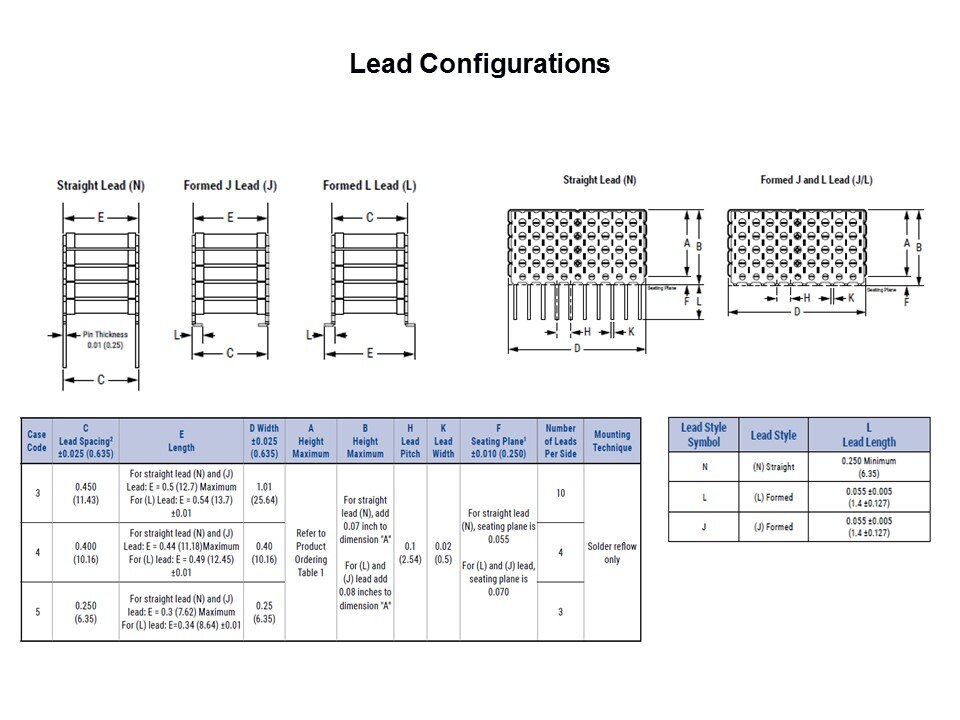

The KPS-MCC series comes in 3 lead configurations to accommodate the user’s preferred mounting conditions. Straight lead for through hole mounting, and Formed J and Formed L for surface mounting. These capacitors can be mounted using standard reflow soldering with both lead free and lead based solders. If hand soldering is required, care must be taken to avoid thermal shock which can lead to cracking of the ceramic. See datasheet for recommended soldering profiles and hand soldering guidelines.
