construction

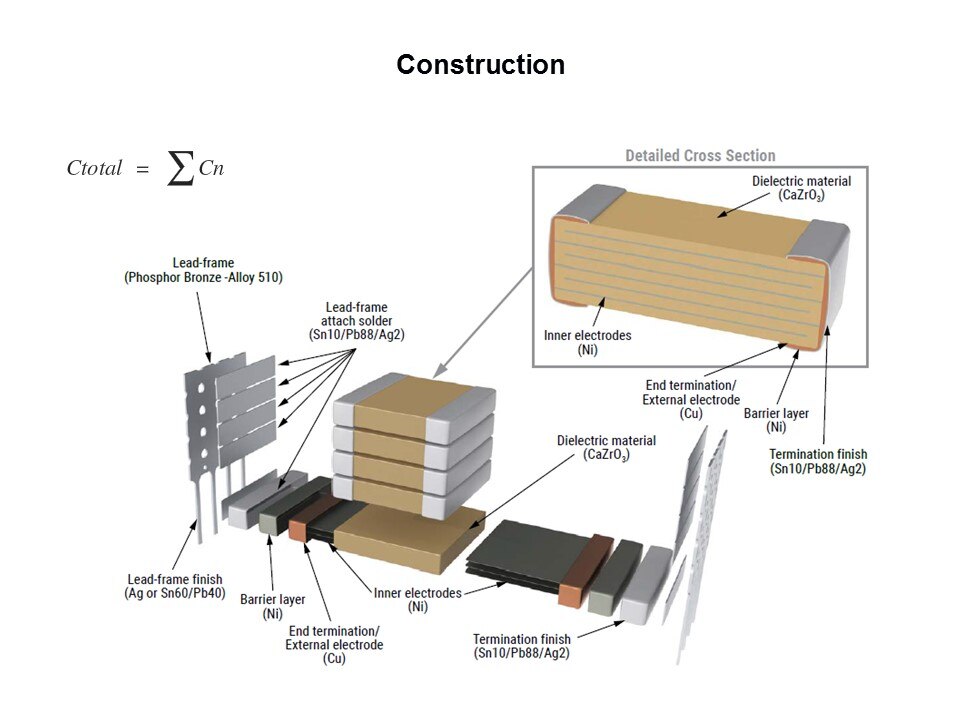

To deliver a bulk capacitance solution for harsh environment applications, multilayer ceramic capacitors are stacked in parallel to increase the total capacitance. When capacitors are placed in parallel, the overall net capacitance is equal to the sum of the individual capacitors. More capacitors in the stack will lead to more bulk capacitance. Lead frames are then attached to the stack using a high melting point solder, allowing for increased mechanical robustness and vibration resistance. The KPS-MCC lead frame comes in a silver or tin lead finish depending on the end user's application.
