            SYB 1.0 mm Board-to-Wire Connector Series

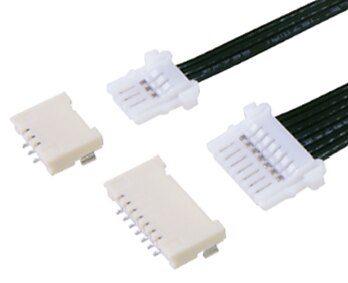

                    J.A.M. SYB Series 1.0 mm pitch,  low cost, positive locking connectors assure full assembly insertion


J.A.M. SYB series of connectors provide a positive locking feature. The structure of the housing and header prevents misinsertion during the assembly process. Lanceless contacts provide no back-outs or stubbing. The series features right-angle applications and full utilization with the JACK automatic insertion and terminal processing machine. The connector housing is made of Nylon 66 material, and the header is made of GF Nylon 9T. Both are UL 94-0 rated and RoHS compliant.

Features

Super low 2 mm profile design (height)
SMT
Side spring lock ensures ease of assembly

Insertion guide with integrated reinforcing tab protects against misinsertion
Suitable for automatic processing by J.A.M. JACK model fully automatic wire and terminal processing machine

Specifications

Poles: 4, 7, 8, 9, 15
Pitch: 1.0 mm
Rated voltage: AC/DC 50 V
Rated current: AWG #28/30: 1 A; AWG #32: 0.8 A

Withstand voltage: AC 500 V/min
Insulation resistance: 100 MΩ over
Temperature range: -40°C to +85°C
Wire size: AWG #28 to #32

Applications

Home appliances/consumer electronics, such as TVs, vacuum cleaners, printers, and cameras

SYB Board-to-Wire Connectors
