TL3901 Series Right Angle SMT Tact Switch
The TL3901 series tact switch offers some unique features including right angle SMT, PC board edge mounting, subminiature package size and tape and reel packaging (2,000 pieces per reel). This miniature tact switch offers an operating force of 180 gram force, gull wing termination and silver contacts. It also comes with mounting bosses.
SPECIFICATIONS
- Electrical Rating: 50 mA @ 12 VDC
- Life Expectancy: 50,000 cycles
- Contact Resistance: 500 mΩ Max.
- Insulation Resistance: 100 MΩ Min. at 500 VDC
- Dielectric Strength: 250 VAC for 1 min.
- Operating Temperature: -25°C to 70°C
- Storage Temperature: -30°C to 80°C
- Operating Force: 180 +80/-40 gf
- Travel: 0.3 mm ± 0.15 mm
- Contact Arrangement: SPST, Normally Open
TL3780 Series Ultra-miniature Tact Switches
E-Switch's TL3780 series tact switches are surface-mounted and ultra-miniature in size. They are a mere 2 mm x 3 mm in size with a very low profile of 0.6 mm. There are two operating force options, 240 gf and 330 gf. The switches have a life cycle of 300,000 to 500,000 actuations depending on the operating force and have a rating of 20 mA at 15 VDC.
SPECIFICATIONS
- Electrical Rating: 20 mA @ 15 VDC
- Electrical Life:
- 500,000 Cycles (240 gf)
- 300,000 Cycles (330 gf)
- Contact Resistance: 500 mΩ Max. initial
- Insulation Resistance: 50 MΩ at 100 VDC
- Dielectric Strength: 250 VAC for 1 min.
- Operating Temperature: -40°C to 85°C
- Storage Temperature: -40°C to 85°C
- Operating Force: 240, 330 gf
- Travel: 0.13 mm
- Contact Arrangement: SPST
TL3700 Ultra-Miniature Tactile Switch
E-Switch announces the tiniest tactile switch they have ever offered: the TL3700 series. These ultra miniature micro tactile switches are a mere 3.0 mm x 2.6 mm x 0.65 mm. The smallest tactile switch series in E-Switches' product line, these switches features a 100,000 cycle life expectancy and two different gram force options.
SPECIFICATIONS
- Electrical Rating: 20 mA @ 15 VDC
- Life Expectancy: up to 100,000 cycles
- Contact Resistance: 500 mΩ Max.
- Insulation Resistance: 100 MΩ min. at 500 VDC
- Dielectric Strength: 250 VAC for 1 minute
- Operating Temperature: -40°C to 85°C
- Operating Force: 100 gf and 160 gf
- Travel: 0.15 mm
- Contact Arrangement: SPST, Off-(On)
TL3365 Series Ultraminiature SMT Tact Switch
It is a mere 4.2 mm x 3.2 mm in size and has an operating force of 180 grams. It has a life cycle of 100,000 actuations and a rating of 50 mA at 12 VDC. With the small footprint and SMT design, it can be used for many small applications, including wearable technology, medical devices, audio/visual, and other products where space is at a premium.
SPECIFICATIONS
- Electrical Rating: 50 mA @ 12 VDC
- Electrical Life: 100,000 Cycles
- Mechanical Life: 100,000 Cycles
- Contact Resistance: 100 mΩ Max. Initial
- Insulation Resistance: 100 MΩ at 100 VDC
- Dielectric Strength: 250 AC for 1 min.
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -30°C to 80°C
- Operating Force: 180 gf
- Travel: 0.2 mm
- Contact Arrangement: SPST
TL3301 Series SMT Tactile Switches
TL3301 series is a 6 mm x 6 mm SMT tact switch. Designed for SMT applications, each model has different features ranging from low-profile designs to many actuator sizes and operating forces. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computers/peripherals.
SPECIFICATIONS
- Contact Rating: 50 mA 12 VDC
- Mechanical Life: ≥100,000 cycles
- Contact Resistance: 100 mΩ maximum
- Insulation Resistance: 100 MΩ minimum
- Dielectric Strength: 250 AC
- Actuation force: 100 ± 50 gf; 160 ± 50 gf; 260 ± 50 gf
TL3200 Series SMT Tact Switch
The TL3200 tact switch features a dual LED with an SMT design. Choose a single- or dual-color option for the LEDs. Its ultra-miniature design is only 4.5 mm x 6.8 mm x 2 mm.
SPECIFICATIONS
- Contact Rating: 50 mA 12 VDC
- Life Expectancy: 30,000 Cycles
- Contact Resistance: 500 mΩ
- Insulation Resistance: 100 MΩ Min.
- Dielectric Strength: 250 VAC
- Actuation Force: 160 gf +75/-30 gf
- Operating Temperature: -25°C to 85°C
- Travel: 0.25 mm +0.2/-0.1 mm
TL3340 Series SMT Sub-Miniature Tactile Switch
The TL3340 series surface mount subminiature tact switch features reliable dome technology and a strong tactile force.
SPECIFICATIONS
- Electrical Life: 100,000 Cycles
- Mechanical Life: 100,000 Cycles
- Contact Resistance: 500 mΩ (Initial Max.)
- Insulation Resistance: 100 MΩ (Min. at 100 V)
- Dielectric Strength: 500 VAC
- Operating Temperature: -35°C to 85°C
- Storage Temperature: -35°C to 85°C
- Travel: 0.20 ± 0.1 0mm
- Contact Rating: 50 mA @ 12 VDC
TL1014 Series Micro-Miniature Right Angle SMT Tact
The TL1014 subminiature tact switch is side mount actuated. It is a right angle, SMT mounted tact switch, and it comes in tape and reel packaging for easy insertion into your design. It has gull wing termination. This tact switch is available with boss (locating pin) or without boss.
SPECIFICATIONS
- Life Expectancy: 160 gf: 200,000 cycles; 220 gf: 100,000 cycles
- Contact Resistance: 100 mΩ Max
- Insulation Resistance: 100 MΩ Min. at 500 V
- Dielectric Strength: 250 VAC
- Operating Temperature: -40°C to 85°C
- Travel: 160 gf: 0.25 mm; 220 gf: 0.30 mm
- Contact Rating: 12 VDC, 50 mA
TL1015 Series Micro-Miniature Tact Switch
The TL1015 series ultra miniature tact switch is top actuated for miniature surface mount applications. Switch available with Boss (locating pin) and without Boss.
SPECIFICATIONS
- Life Expectancy: 200,000 Cycles
- Contact Resistance: 100 mΩ Max. Initial
- Insulation Resistance: 100 MΩ Min. at 500 VDC
- Dielectric Strength: 100 VAC
- Operating Temperature: 20°C to 70°C
- Travel: 0.2 ± 0.1 mm
- Contact Rating: 50 mA 12 VDC
TL3315 Series Low Profile SMT Tactile Switch
The TL3315 series tactile switches features a very low profile (.55 mm) and are surface mount, making it a great tact switch for applications that have a tight fit.
SPECIFICATIONS
- Electrical Life:
- 1,000,000 Cycles - 100 gf
- 500,000 Cycles - 160 gf
- 200,000 Cycles - 250 gf
- Contact Resistance: 200 mΩ Initial Max.
- Insulation Resistance: 50 MΩ Min. at 100 VDC
- Dielectric Strength: 250 VAC
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -25°C to 80°C
- Force: 100 gf ± 30 gf; 160 gf ± 50 gf; 250 gf ± 50 gf
- Travel: 0.20 mm
- Contact Rating: 50 mA
TL3342 Series Low Profile SMT Tact Switch
The TL3342 series SMT tactile switch has a very low profile design and positive tactile response. It has two opearating force options to choose from. It's low profile is a mere 1.54 mm high.
SPECIFICATIONS
- Life Expectancy: 100,000 Cycles Typical
- Contact Resistance: 20 mΩ Max. Initial at 2-4 VDC, 100 mA
- Insulation Resistance: 100 MΩ
- Dielectric Strength: 1,000 Vrms at Sea Level
- Actuation Force: 160 gf ± 50 gf; 260 gf ± 50 gf
- Contact Rating: 50 mA 12 VDC
TL3313 Series Sub-miniature Tactile Switch with Small Foot Print
The TL3313 series SMT subminiature tact switch has a footprint of 4.8 mm x 4.8 mm and is offered with three different operating forces, 100 gf, 160 gf, and 250 gf.
SPECIFICATIONS
- Electrical Life: 100,000 Cycles
- Mechanical Life: 100,000 Cycles
- Contact Resistance: 50 mΩ Initial Max.
- Insulation Resistance: 100 MΩ Min. at 100 VDC
- Dielectric Strength: 250 VAC for 1 Minute
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -30°C to 80°C
- Force: 100 gf ± 50 gf; 160 gf ± 50 gf; 250 gf ± 50 gf
- Travel: 0.25 mm +0.2/-0.1 mm
- Contact Rating: 0 mA 12 VDC
TL3330 Series SMT Right Angle Tactile Switch
The TL3330 series SMT right angle tactile switches have a small profile that works great for many consumer electronics applications. There are two gram force options to choose from and this tact switch comes with silver contacts. It has a gull wing termination.
SPECIFICATIONS
- Life Expectancy: 50,000 Cycles - 130 gf; 30,000 Cycles - 260 gf
- Contact Resistance: 100 mΩ
- Insulation Resistance: 100 MΩ
- Dielectric Strength: 250 VAC
- Operating Temperature: -30°C to 70°C
- Actuation Force: 130 gf ± 40 gf; 260 gf ± 50 gf
- Travel: 0.25 mm ± 0.15 mm
- Contact Rating: 50 mA @ 12 VDC
TL3305 Series Ultraminiature SMT Tact Switch
The TL3305 series ultraminiature SMT tact switch offers a mere 4.5 mm x 4.5 mm package size for your application design. It has a surface mount termination, and two operating forces to choose from with operating lifecycle up to 500,000. It also offers multiple actuator lengths from 3.8 mm to 7.0 mm.
SPECIFICATIONS
- Electrical Rating: 50 mA @ 1 2 VDC
- Electrical Life: 160 gf = 500,000 Cycles;
250 gf = 200,000 Cycles
- Contact Resistance: 100 mΩ Max
- Insulation Resistance: 100 MΩ Min. at 100 VDC
- Dielectric Strength: 250 VAC for 1 min
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -30°C to 80°C
- Operating Force: 160 gf, 260 gf
- Travel: 0.20 mm
- Contact Arrangement: SPST, normally open
TL3302 Series 3.5mm x 6mm SMT Tactile Switch
The TL3302 series tact switches feature a 3.5 mm x 6 mm packaged design. This switch is an SMT tactile switch offering reliable dome contact technology and strong tactile feedback.
SPECIFICATIONS
- Life Expectancy: 20,000-50,000 Cycles, Depending on Model
- Contact Resistance: 100 mΩ Max., Typical at 2-4 VDC; 100 mA
- Insulation Resistance: 100 MΩ Min.
- Dielectric Strength: 250 VAC
- Operating Temperature: -20°C to 70°C
- Actuation Force: 130 gf ± 50 gf, 180 gf ± 50 gf, 260 gf ± 50 gf
- Travel: 0.25 + .02/-0.1 mm
- Contact Rating: 50 mA 12 VDC
TL6700 Series Sealed SMT Tactile Switch
The TL6700 series is a staple in our sealed tact switch line. An SMT Sealed Tactile switch, it is process sealed.
SPECIFICATIONS
- Life Expectancy: 100,000 cycles at 260 gf; 500,000 cycles at 160 gf
- Contact Resistance: 100 mΩ Max. Initial at 2- 4 VDC
- Insulation Resistance: 100 MΩ Min.
- Dielectric Strength: 250 VAC
- Operating Temperature: -20°C to 70°C
- Actuation Force: 160 gf ± 50 gf; 260 gf ± 50 gf
- Travel: 0.35 ± 0.2 mm
- Contact Rating: 50 mA 12 VDC
TL3360 Series Right Angle SMT Tact Switch
Designed for right angle SMT applications, it offers multiple actuation heights and operating force options of 185 gf or 260 gf.
SPECIFICATIONS
- Electrical Rating: 50 mA at 12 VDC
- Electrical Life: 200,000 Cycles
- Contact Resistance: 100 mΩ Max.
- Insulation Resistance: 100 MΩ Min. at 500 VDC
- Dielectric Strength: 250 VAC for 1 min.
- Operating Temperature: -25°C to 70°C
- Storage Temperature: -30°C to 80°C
- Operating Force: 185 gf, 260 gf
- Travel: 0.15 mm
- Contact Arrangement: SPST
TL6210 Series SMT Sealed Miniature Tact Switch
The TL6210 series tact switch has a host of features, including surface mount termination, miniature footprint, and sealed to IP67 ratings. It also offers illumination, with LED colors that include red, green, yellow, blue, white, and a combination of red/green or green/yellow.
SPECIFICATIONS
- Electrical Rating: 50 mA at 12 VDC
- Electrical Life: 100,000 Cycles
- Mechanical Life: 100,000 Cycles
- Contact Resistance: 500 mΩ
- Insulation Resistance: 100 MΩ Min. at 100 VDCC
- Dielectric Strength: 250 VAC for 1 min.
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -20°C to 70°C
- Operating Force: 200 +/- 80 gf
- Travel: 0.45 mm +/- 0.15 mm
- Contact Arrangement: SPST
- Moisture Protection: IP67
TL6120 Series SMT Process Sealed Tact Switch
The TL6120 series tact switch offers a long operating life of up to 1 million cycles and offers multiple actuator heights. This surface mount switch is process sealed and has multiple operating force options: 130 gf, 160 gf, 300 gf, or 500 gf.
SPECIFICATIONS
- Life Expectancy: up to 1M cycles
- Contact Resistance: 100 mΩ Max (initial)
- Insulation Resistance: 100 MΩ Min. at 100 VAC
- Dielectric Strength: 250 VAC for 1 minute
- Operating Temperature: -40°C to 85°C
- Storage Temperature: -40°C to 85°C
- Travel: 0.50 mm
- Moisture Protection: Process sealed
- Actuation Force: 130 gf, 160 gf, 300 gf, 500 gf
- Contact Arrangement: SPST
TL4105 Series Right Angle Ultra Miniature Tact Switch
The TL4105 series right angle, board edge mounted, tact switch offers an ultra compact design. This tact switch sits on the edge of the PC board, offering a unique design opportunity. It has a 200,000 life expectancy.
SPECIFICATIONS
- Electrical Rating: 50 mA, 12 VDC
- Life Expectancy: 200,000 cycles
- Contact Resistance: 1 mΩ Max
- Insulation Resistance: 100 MΩ Min at 500 VDC
- Dielectric Strength: 250 VAC for 1 Minute
- Operating Temperature: -40°C to 85°C
- Operating Force: 160 gf ± 50 gf
- Travel: 0.15 mm ± 0.10 mm
- Function: SPST, Off-(On), Momentary
TL9210 Series SMT Tact Switch Long Travel
This tact switch offers a long travel and a quiet tactile feel with low contact resistance. You have your choice of 180 or 260 grams for the operating force. The actuator is 5.0 mm long and the switch has a 100,000 cycle operating life.
SPECIFICATIONS
- Electrical Rating: 50 mA at 12 VDC
- Electrical Life: 100,000 Cycles
- Mechanical Life: 100,000 Cycles
- Contact Resistance: 100 mΩ initial
- Insulation Resistance: 100 MΩ Min. at 100 VDC
- Dielectric Strength: 250 VAC for 1 min.
- Operating Temperature: -20°C to 70°C
- Storage Temperature: -30°C to 80°C
- Operating Force: 200 +/- 80 gf
- Travel: 1.3 mm +/- 0.2 mm
- Contact Arrangement: SPST
JS1400 Series 5-position Navigation Switch
The JS1400 series navigation switch is an SMT, 5-position joystick switch. Navigation switches are used in applications where user interface is needed.
SPECIFICATIONS
- Life Expectancy: 100,000 Actuations
- Contact Resistance: 100 mΩ
- Insulation Resistance: 100 MΩ Min. at 500 VDC
- Dielectric Strength: 250 VAC
- Operating Temperature: -20°C to 70°C
- Operating Force: Push = 360 gf ± 60 gf
Tilt = 160 gf ± 50 gf
- Travel: Center Direction: 0.25 + 0.1/-0.2 mm
Tilt: 5 + 2.5/-1 Degrees
- Contact Rating: 50 mA 12 VDC
JS1300 Series 5-position Navigation Switch
The JS1300 series navigation switch is the latest in design and functionality of E-Switch's Navigation series. Loaded with features, including the 5-position navigation, very low profile, sleek, SMT design, it replaces 5 independent switches. This navigation switch is great for use in consumer applications where user interface is needed, such as GPS tracking systems, handheld consumer devices, wireless communications, and navigation.
SPECIFICATIONS
- Electrical Rating: 20 mA 12 VDC
- Life Expectancy: 200,000 Actuations in Any Direction (X, Y, or Z)
- Contact Resistance: 500 mΩ
- Insulation Resistance: 100 MΩ
- Dielectric Strength: 100 VAC for 1 Minute
- Operating Temperature: -20°C to 70°C
- Operating Force:
- Center = 320 gf +80 / -60 gf
- Tilt = 180 gf ± 60 gf
- Travel: 0.25 ± .015 mm
TL4100 Series Right Angle Tact Switch
Offering a very unique board edge mounting design, an ultra-miniature size, and a long life expectancy, these switches are a perfect fit for handheld devices.
SPECIFICATIONS
- Electrical Rating: 50 mA, 12 VDC
- Life Expectancy: up to 1,000,000 Cycles
- Contact Resistance: 100 mΩ Max
- Insulation Resistance: 100 MΩ Min at 500 VDC
- Dielectric Strength: 250 VAC for 1 Minute
- Operating Temperature: -40°C to 85°C
- Operating Force:
- 120 gf ± 50 gf (1,000,000 Cycles)
240 gf ± 60 gf (500,000 Cycles)
- Travel: 0.15 mm ± 0.10 mm
- Function: SPST, Off-(On), Momentary

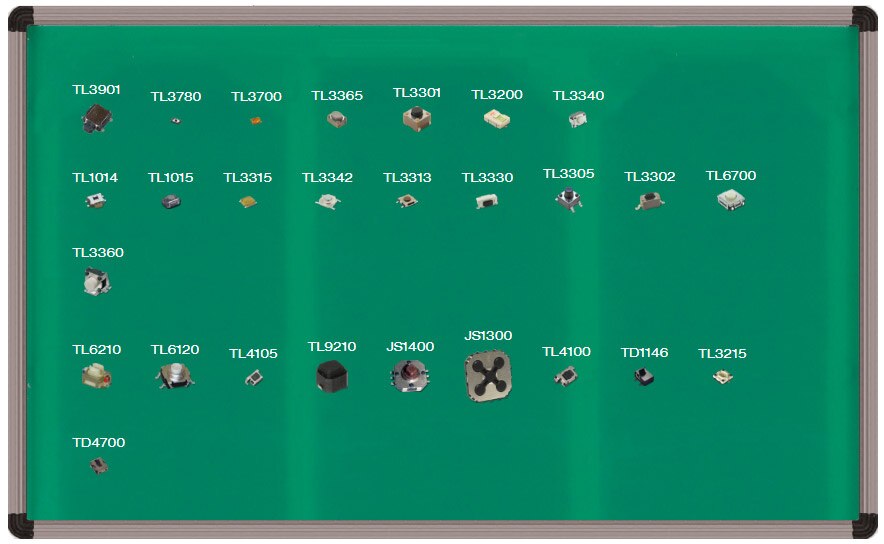

TD1146 Series SMT Ultraminiature Detector Switch
The TD1146 series detector switch is ultraminiature in size with a mere 4.8mm x 3.5mm footprint. It is a surface mount switch and can be used in projects where space is at a premium. Applications for the TD1146 series detector switch include consumer electronics, telecommunications, networking, computers/servers, performance audio, instrumentation, appliances, low power on/off designs, external hard drives and modems, and more.
SPECIFICATIONS
- Contact Rating: 1 mA @ 5 VDC
- Electrical Life: 30,000 Cycles
- Contact Resistance: 100 mΩ Max. Initial
- Insulation Resistance: 100 MΩ @ 100 VDC
- Dielectric Strength: 100 VAC
- Operating Temperature: -25°C to 70°C
- Storage Temperature: -25°C to 70°C
- Operating Force: < 50 gf
- Travel: 3.0 mm nominal
- Contact Arrangement: SPST, N.O.
TL3215 Series Miniature Illuminated SMT Tact Switch
These surface mount, low-profile switches offer a 1,000,000 cycle life expectancy. The applications and markets for the switch include medical equipment, audio/visual, computer peripherals, consumer electronics, telecommunications, and instrumentation.
SPECIFICATIONS
- Electrical Rating: 50 mA @ 12 VDC
- Electrical Life: 1,000,000 Cycles
- Mechanical Life: 1,000,000 Cycles
- Contact Resistance: 100 mΩ Max. initial
- Insulation Resistance: 100 MΩ at 500 VDC
- Dielectric Strength: 250 VAC for 1 min.
- Operating Temperature: -40°C to 85°C
- Storage Temperature: -40°C to 85°C
- Operating Force: 160 gf
- Travel: 0.25 mm
- Contact Arrangement: SPST
Settings
Fast Delivery
Free Shipping
Incoterms
Payment Types
Marketplace Product
Hong Kong, China
