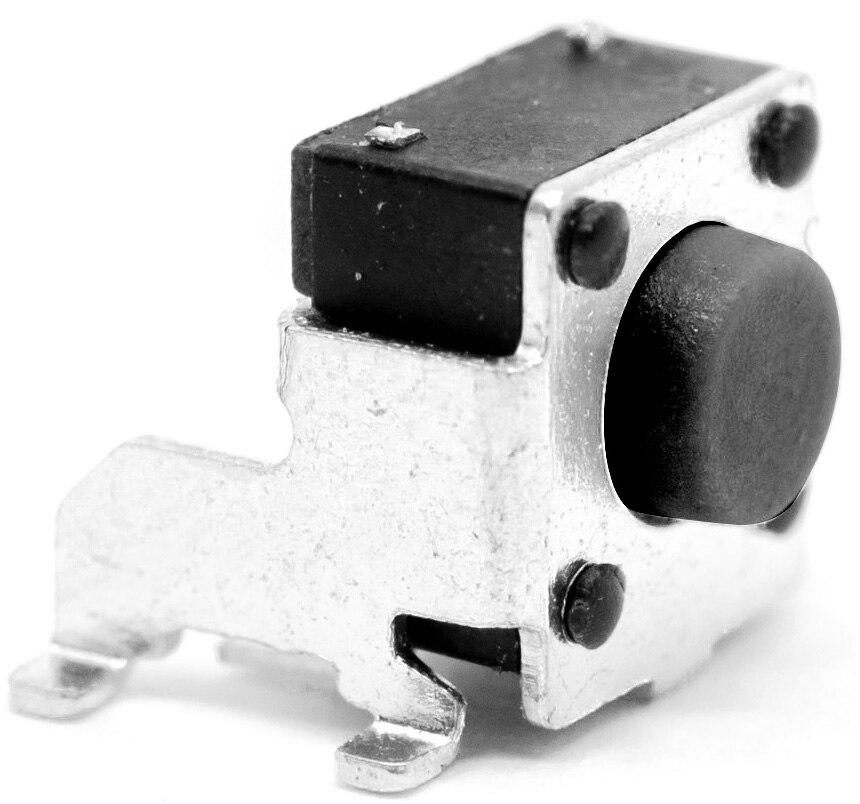

TL3336 Series Right-Angle Tact Switch

E-Switch’s TL3336 series right-angle surface mount, side-actuated mid-size tact switch features robust PCB soldering pads for a secure connection. The TL3336 series is rated IP67 for dust and moisture protection and provides up to 100,000 cycle life expectancy. This tact switch has a contact arrangement of SPST, off-(on), features a soft black actuator that is 1.9 mm high, and provides 160 gf of operating force.

The TL3336 series switch provides a contact rating of 50 mA, 12 V_DC, dielectric strength of 250 V_AC for 1 minute, an operating temperature range of -20°C to +70°C, travel of 0.35 mm, and comes in tape and reel packaging.

This tact series is suitable for applications that require a rugged momentary action switch, such as audio/visual equipment, computer peripherals, computer electronics, medical equipment, telecommunication devices, and test and instrumentation equipment.
