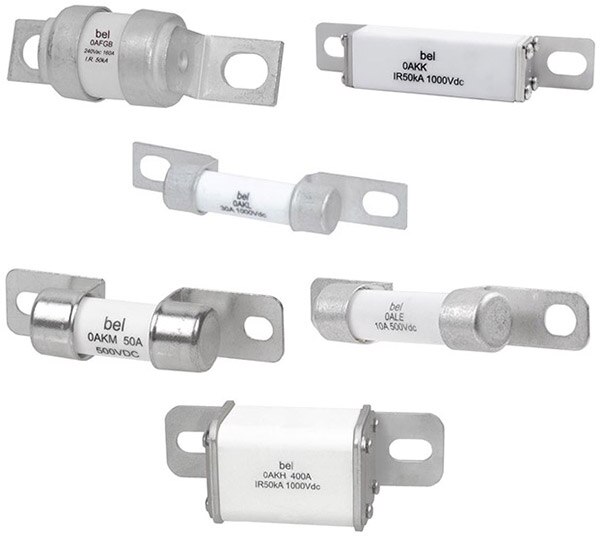

                    Bel Fuse's electric vehicle (EV) fuses protect high-power battery charging and ‎management systems up to ‎‎1000 VDC


Bel Fuse’s electric vehicle and hybrid electric vehicle (HEV) fuses are used in EV and HEV applications for circuit ‎protection. These fuses cover 240 V, 500 V, and 1000 V applications and are used in main battery packs, battery modules, junction ‎boxes, auxiliary circuits, and charging stations. These series comprise fast-acting ceramic fuses.

Resources

Brochure: Circuit Protection for Automotive

Features

150 V_DC

0AFG Series

25 A to 180 A
BS88‐4 style stud‐mount fuse

1000 V_DC

0AKL Series

10 A to 30 A

0AKK Series

63 A to 350 A

0ALA Series

150 A to 250 A

0AKH Series

350 A to 500 A

500 V_DC

0ALE Series

10 A to 50 A
Stud-mount, optional for other installation

0AKM Series

50 A to 80 A

0AKN Series

100 A to 250 A

0AKR Series

150 A to 400 A

0AKS Series

400 A to 500 A
Stud-mount, optional for other installation

Applications

Charging stations to portable chargers
PDU, batteries, main power
PDU to aux: DC/DC, heating, brake pump motors
A/C, steering

Energy storage, main power
Energy storage, auxiliary
Main fuses

150 VDC (25 A to 180 A) Bolt Mount Fuses

Manufacturer Part Number	Description	Available Quantity	Price	View Details
0AFGB9250SBA	FUSE 25A 240V STUD MNT	0 - Immediate	$80.73	View Details
0AFGB9500SBA	FUSE 50A 240V STUD MNT	0 - Immediate	$80.73	View Details
0AFGB9800SBA	FUSE 80A 240V STUD MNT	0 - Immediate	$80.73	View Details
0AFGBK100SBA	FUSE 100A 240V STUD MNT	0 - Immediate	$80.73	View Details
0AFGBK125SBA	FUSE 125A 240V STUD MNT	0 - Immediate	$88.05	View Details
0AFGBK160SBA	FUSE 160A 240V STUD MNT	0 - Immediate	$88.05	View Details
0AFGBK180SBA	FUSE 180A 240V STUD MNT	0 - Immediate	$88.05	View Details

500 VDC (10 A to 80 A) Bolt Mount Fuses

Manufacturer Part Number	Description	Available Quantity	Price	View Details
0ALEB9100-PD	FUSE 10A 500V STUD MNT	39 - Immediate	$103.87	View Details
0ALEB9200-PD	FUSE 20A 500V STUD MNT	31 - Immediate	$103.87	View Details
0ALEB9300-PD	FUSE 30A 500V STUD MNT	40 - Immediate	$103.87	View Details
0ALEB9400-PD	FUSE 40A 500V STUD MNT	32 - Immediate	$114.30	View Details
0ALEB9500-PD	FUSE 50A 500V STUD MNT	42 - Immediate	$114.30	View Details
0AKMB9500-BD	FUSE 50A 500V STUD MNT	9 - Immediate	$119.47	View Details
0AKMB9600-BD	FUSE 60A 500V STUD MNT	12 - Immediate	$119.47	View Details
0AKMB9800-BD	FUSE 80A 500V STUD MNT	2 - Immediate	$140.08	View Details

500 VDC (100 A to 500 A) Bolt Mount Fuses

Manufacturer Part Number	Description	Available Quantity	Price	View Details
0AKNBK100-BB	FUSE 100A 500V STUD MNT	10 - Immediate	$305.86	View Details
0AKNBK125-BB	FUSE 125A 500V STUD MNT	0 - Immediate	$234.09	View Details
0AKNBK150-BB	FUSE 150A 500V STUD MNT	0 - Immediate	$234.09	View Details
0AKNBK175-BB	FUSE 175A 500V STUD MNT	0 - Immediate	$234.09	View Details
0AKNBK200-BB	FUSE 200A 500V STUD MNT	3 - Immediate	$324.66	View Details
0AKNBK250-BB	FUSE 250A 500V STUD MNT	8 - Immediate	$343.38	View Details
0AKRBK150-BB	FUSE 150A 500V STUD MNT	0 - Immediate	$285.82	View Details
0AKRBK200-BB	FUSE 200A 500V STUD MNT	0 - Immediate	$285.82	View Details
0AKRBK250-BB	FUSE 250A 500V STUD MNT	1 - Immediate	$352.66	View Details
0AKRBK300-BB	FUSE 300A 500V STUD MNT	0 - Immediate	$371.22	View Details
0AKRBK350-BB	FUSE 350A 500V STUD MNT	0 - Immediate	$398.89	View Details
0AKRBK400-BB	FUSE 400A 500V STUD MNT	0 - Immediate	$426.40	View Details
0AKSBK400-BA	FUSE 400A 500V STUD MNT	0 - Immediate	$391.35	View Details
0AKSBK450-BA	FUSE 450A 500V STUD MNT	0 - Immediate	$432.34	View Details
0AKSBK500-BA	FUSE 500A 500V STUD MNT	0 - Immediate	$502.28	View Details

1000 VDC (10 A to 350 A) Bolt Mount Fuses

Manufacturer Part Number	Description	Available Quantity	Price	View Details
0AKLB9100-PD	FUSE 10A 1000V STUD MNT	17 - Immediate	$114.30	View Details
0AKLB9150-PD	FUSE 15A 1000V STUD MNT	2 - Immediate	$114.30	View Details
0AKLB9200-PD	FUSE 20A 1000V STUD MNT	38 - Immediate	$114.30	View Details
0AKLB9250-PD	FUSE 25A 1000V STUD MNT	8 - Immediate	$114.30	View Details
0AKLB9300-PD	FUSE 30A 1000V STUD MNT	3 - Immediate	$124.64	View Details
0AKK-9630-BB	FUSE 63A 1000V STUD MNT	0 - Immediate	$388.19	View Details
0AKK-9800-BB	FUSE 80A 1000V STUD MNT	16 - Immediate	$494.30	View Details
0AKK-K100-BB	FUSE 100A 1000V STUD MNT	6 - Immediate	$530.18	View Details
0AKK-K125-BB	FUSE 125A 1000V STUD MNT	0 - Immediate	$416.32	View Details
0AKK-K160-BB	FUSE 160A 1000V STUD MNT	0 - Immediate	$527.10	View Details
0AKK-K175-BB	FUSE 175A 1000V STUD MNT	0 - Immediate	$527.10	View Details
0AKK-K250-BA	FUSE 250A 1000V STUD MNT	8 - Immediate	$928.66	View Details
0AKK-K300-BA	FUSE 300A 1000V STUD MNT	0 - Immediate	$822.70	View Details
0AKK-K350-BA	FUSE 350A 1000V STUD MNT	0 - Immediate	$1,154.57	View Details

1000 VDC (150 A to 500 A) Bolt Mount Fuses

Manufacturer Part Number	Description	Available Quantity	Price	View Details
0ALABK150-BA	FUSE 150A 1000V STUD MNT	0 - Immediate	$615.85	View Details
0ALABK160-BA	FUSE 160A 1000V STUD MNT	0 - Immediate	$648.92	View Details
0ALABK200-BA	FUSE 200A 1000V STUD MNT	0 - Immediate	$648.92	View Details
0ALABK250-BA	FUSE 250A 1000V STUD MNT	2 - Immediate	$822.41	View Details
0AKHBK350-BA	FUSE 350A 1000V STUD MNT	3 - Immediate 4 - Marketplace	$1,218.67	View Details
0AKHBK400-BA	FUSE 400A 1000V STUD MNT	26 - Immediate	$1,424.12	View Details
0AKHBK450-BA	FUSE 450A 1000V STUD MNT	0 - Immediate	$1,358.55	View Details
0AKHBK500-BA	FUSE 500A 1000V STUD MNT	4 - Immediate	$1,520.92	View Details
