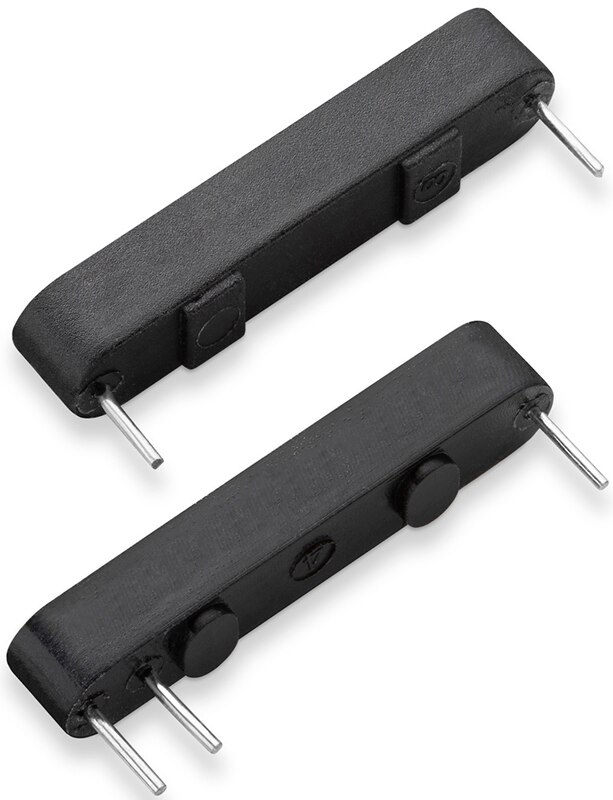

59050 Miniature PCB Mountable Reed Switches
Littelfuse’s two-part magnetically operated proximity switches feature molded stand-offs to allow for board washing
Littelfuse’s 59050 miniature PCB mountable reed switches are 22.86 mm x 4.57 mm x 4.32 mm (0.900” x 0.180” x 0.170”) in size with a choice of normally open, normally open high voltage, and change over contacts. They feature molded stand-offs to allow board washing. They are capable of switching up to 265 VAC/300 VDC at 10 VA. These switches function best with the matching 57050-000 actuator.
Features
- Two-part magnetically operated proximity switch
- Standard normally open, high voltage normally open, and change over contact configuration
- Molded stand-offs to allow board washing
- RoHS compliant
Applications
- Position and limit sensing
- Door switches
- Security system switches
59050 Miniature PCB Mountable Reed Switches
| 圖片 | 製造商零件編號 | 說明 | 現有數量 | 價格 | 查看詳情 | |
|---|---|---|---|---|---|---|
 |  | 59050-1-T-00-0 | SWITCH REED SPST-NO 350MA 140V | 261 - 即時供貨 | $17.46 | 查看詳情 |
| | 59050-1-U-00-0 | SWITCH REED SPST-NO 350MA 140V | 927 - 即時供貨 | $17.46 | 查看詳情 |
| | 59050-020 | SWITCH REED SPST-NO 300MA 265V | 268 - 即時供貨 | $24.15 | 查看詳情 |
| | 59050-1-S-00-0 | SWITCH REED SPST-NO 350MA 140V | 207 - 即時供貨 | $17.46 | 查看詳情 |
| | 59050-010 | SWITCH REED SPST-NO 350MA 140V | 1965 - 即時供貨 | $12.73 | 查看詳情 |
| | 59050-3-T-00-0 | SWITCH MAGNETIC SPDT 180MA 120V | 1775 - 即時供貨 | $34.51 | 查看詳情 |
| | 59050-1-V-00-0 | SWITCH REED SPST-NO 350MA 140V | 530 - 即時供貨 | $17.46 | 查看詳情 |
| | 59050-3-S-00-0 | SWITCH MAGNETIC SPDT 180MA 120V | 989 - 即時供貨 | $34.76 | 查看詳情 |
| | 59050-030 | SWITCH REED SPDT 250MA | 66 - 即時供貨 | $36.22 | 查看詳情 |
| | 59050-2-S-00-0 | SWITCH REED SPST-NO 300MA 265V | 0 - 即時供貨 | See Page for Pricing | 查看詳情 |
